Disassembling Laptop Toshiba Satellite P855 P850 plus Hinge FIX,

Geschrieben von: Oscar SOTAN
  • Kommentare: 4
Disassembling Laptop Toshiba Satellite P855 P850 plus Hinge FIX,

Schwierigkeitsgrad

Easy

Schritte

16

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

I have described how to open and fully disassemble an laptop Toshiba Satellite P885 (more exact, P855-339). The info is for any Toshiba Satellite P855 or P850.

also how to repair the hinge (broken, I have dropped the laptop on the floor).

https://www.youtube.com/watch?v=-OfPH12F...

  1. YjqIRAoWjNorxTaf
    YjqIRAoWjNorxTaf
    suTXFJ6DPHIHIUU1
    GhvdkKqvpvwZbbcs

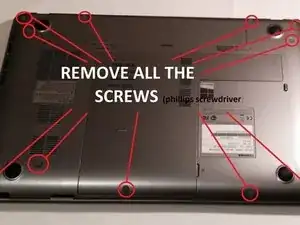

    • To open the laptop, first you have to unscrew the back-screws.

    • 1. remove the plastic/rubber caps

    • 2. unscrew the 12 screws.

    • ATTN: Do not forget!

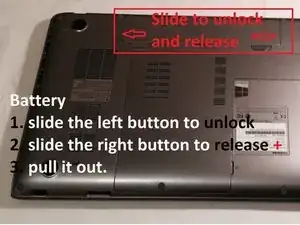

    • unplug the laptop from power source & remove the batery

    • unscrew the 3 tiny screws behind the battery

    • keep the lid closed till later on

    Is this the whole of the foot or just the cap on top of it. I removed the cap and there is a tiny hole but no visible screw. If I take off the foot, they will probably be damaged in the process.

    Steve Marples -

  2. klTMcoD33YqFlbUY
    klTMcoD33YqFlbUY
    NiD3tLeMEcoB4dh1
    XkwOp6HUJdYchxwL

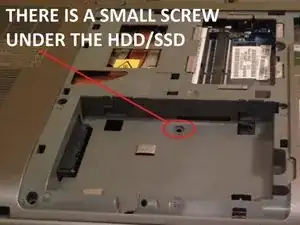

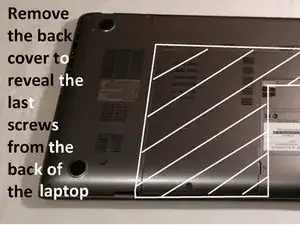

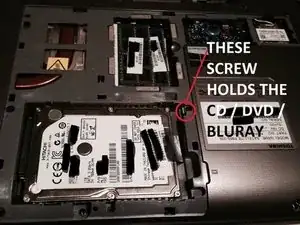

    • Here you have some details regarding the back of the laptop. After you got read of the back cover you can access the following:

    • 1. WIFI card - Easy to change / replace There are two cables attached to it. Remove them, then unscrew the screw that holds the card in place and lift gently up - DONE.

    • 2. HDD / SSD. All you have to do is grab and pull the ribbon (as in photo). There are a few extra steps to change it.

  3. cG6PjJoSbfaxQpfE
    cG6PjJoSbfaxQpfE
    WOuoVmRkM2dEPkJf
    cCgOisRnabYNxabj

    • Now to remove or change the keyboard

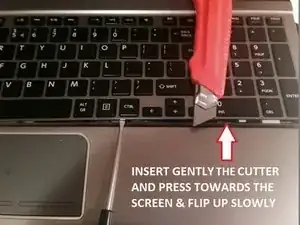

    • 1. Insert gently the cutte (or other sharp tool) and press towards the screen & flip up slowly.

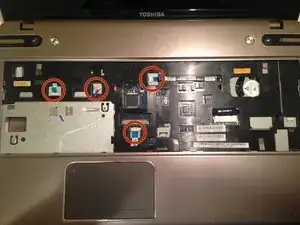

    • To remove it completely unplug the two connectors.

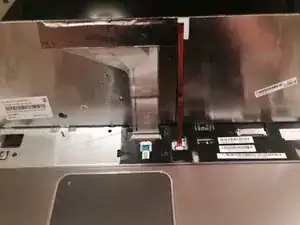

    • After removing the keyboard you find:

    • 1.ECO Button

    • 2. Sound

    • 3. Power button

    • 4. Mouse pad

    I just wanted to say that on my P875-S7102 (which is a very similar build), the keyboard is stuck in there pretty good’n’tight! There is a bit of a cutout at the bottom right corner (as seen when sitting at the laptop normally) and if you can get in there, you can begin to pry it out. It takes a fair bit of force, it’ll feel like you’re almost going to break the keyboard, but it really does just pop out. Just keep going along the front and you can release all the clips one by one.

    Carsten Dreesbach -

  4. amYCdtYBHEfm3alY
    amYCdtYBHEfm3alY
    PusrGTaCM5dLhOTa
    xJbXGMuRoK2UrlCD

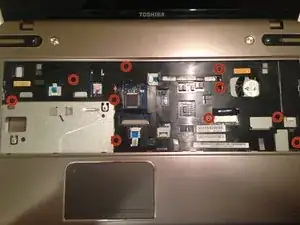

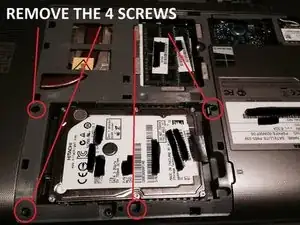

    • remove all the screws as shown in the images.

  5. SnucIxIGOxUQvcR2
    SnucIxIGOxUQvcR2
    UNZ2gQY2FdUHPMrh
    G3UTrVpUplTAQA4Z

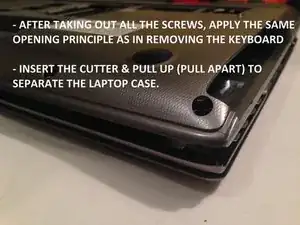

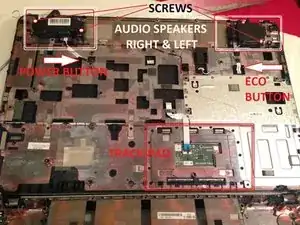

    • Opening the case is easy, follow the steps as shown.

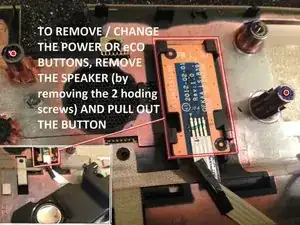

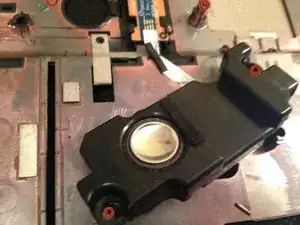

    • To change / remove the speakers remove the screws.

    • To change / remove the Eco/3D button or power button, yo have to remove first the speakers.

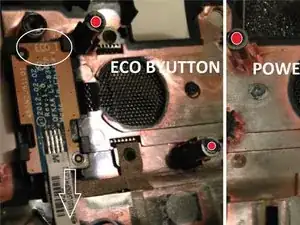

  6. rRyHd4JJKGKVBWfX
    rRyHd4JJKGKVBWfX
    YawtZeNeThvVROtm
    O1fAXofUSFU1X6sZ

    • Still more steps to come :), probably till 12... so min 6 more.

    • I will show you how to repair a broken hinge (plastic broken) - easy.

  7. 1qNq6XQHaOPZUYVU

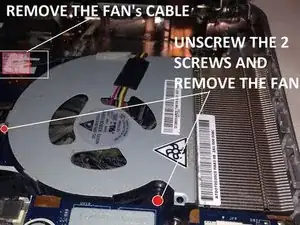

    • Remove the fan cable

    • If you want to change the CPU fan, there are 2 screws that you have to remove (picture)

  8. i2J2DHqHgloUsDla
    i2J2DHqHgloUsDla
    5R6jBiBajIHQEB1M
    ROlGpVD3QY2mamT3

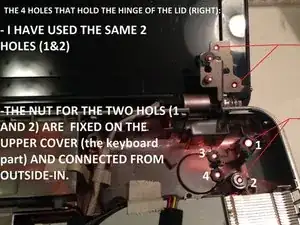

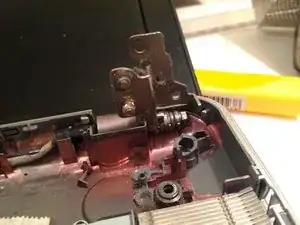

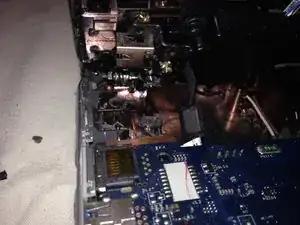

    • Broken hinge, detailed photo

  9. WZjog2ftITAKEGRY
    WZjog2ftITAKEGRY
    VoWQhpFAlJl31Anl
    ghUkbhFZN2JLX6St

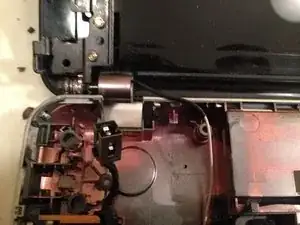

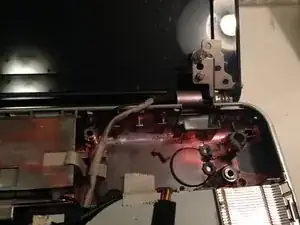

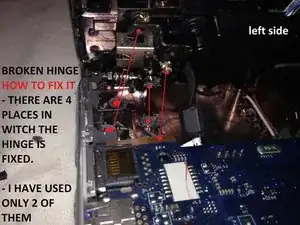

    • Repairing the broken hinge [detailed photo]

  10. iexcOOMyLkIEZH3F
    iexcOOMyLkIEZH3F
    cx3txpMG13Gl5ClG
    UqZxPJkmOAQtRtsB

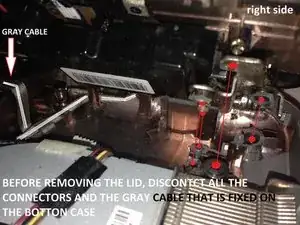

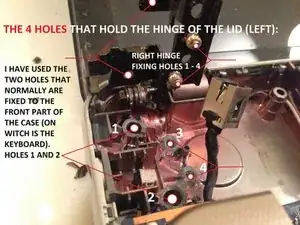

    • do not forget about the grey cable attached on the bottom side.

    • When reattaching the cable, put some thermal paste on the contact (gray cable)

  11. kpxQIlHk5LIfwPJV
    kpxQIlHk5LIfwPJV
    kUceUQJUDloQpcBt
    WgAPeZ1jQyPTMHre

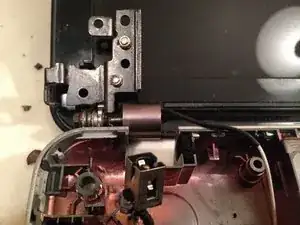

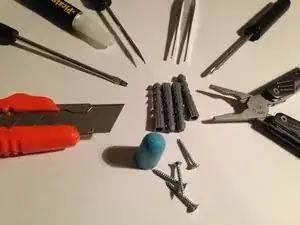

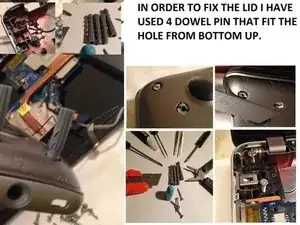

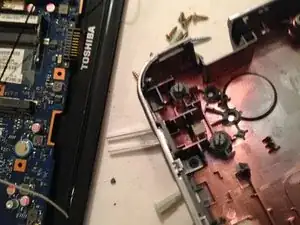

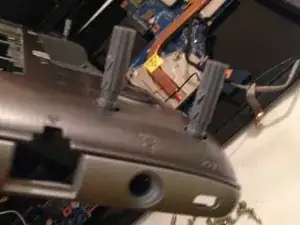

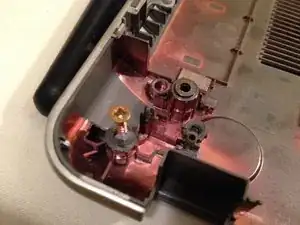

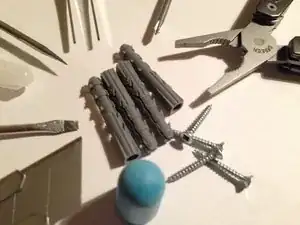

    • insert the plastic dowel pin from bottom-up and level it inside at the same height with other screw holes

  12. 2JhoOpGXrJAoSxYF
    2JhoOpGXrJAoSxYF
    y1wOkEwnmG4BgNXx
    1IDQXopfEGghSLyp

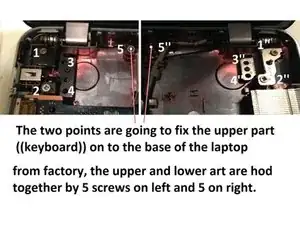

    • follow the pics

  13. thqCJNEM2rVWtLVP
    thqCJNEM2rVWtLVP
    SAH2DRvxCNwAOBmy

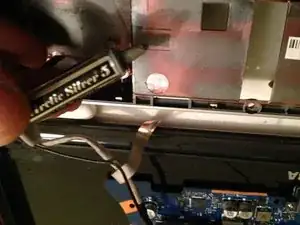

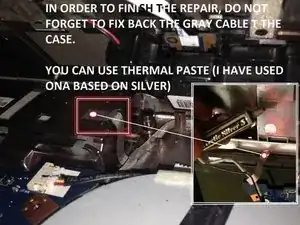

    • add some thermalpaste to the gray cable

  14. HBMOnG5ExtdLQSaE
    HBMOnG5ExtdLQSaE
    2BgcOOHGxGHGXBSY
    cBdXLcbRp6vMPDUe

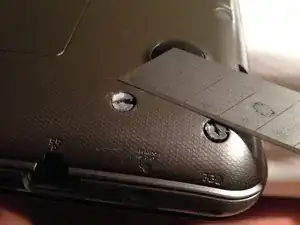

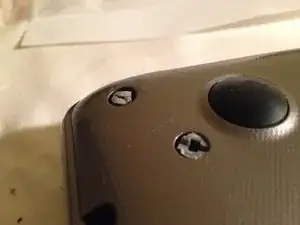

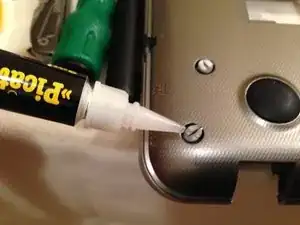

    • Cut the excess plastic from the dowel pin

    • Put some super-glue to fix it in place

  15. RmWdXfNqUKqutU2h
    RmWdXfNqUKqutU2h
    Zb1s6GtjF2ByYkSG
    2rLJXQXFsMbLIIkE

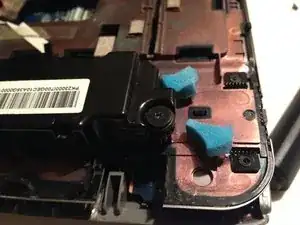

    • I have glued some foam near the speakers in order to protect the aerea

  16. ubrLv536fIXn3diw
    ubrLv536fIXn3diw
    HdnSSq6g6QUCNdSq
    IKICPiijvgCcaH4X

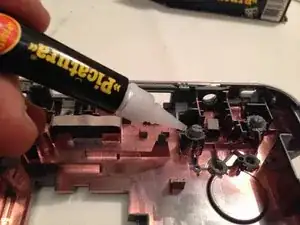

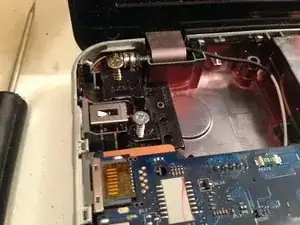

    • Glue inside the plastic dowel pin

    • Use thermal paste to fix the gray cable (i have used silver paste)

Abschluss

To reassemble your device, follow these instructions in reverse order.
