Disassembling Macintosh IIsi Logic Board

Start by turning the computer around, and remove this #0 Phillips Screw.

Now lift these two clips, and slowly pivot the case up.

You can now seperate the top of the computer from the rest of the machine.

The Macintosh IIsi's hard drive is located ajacent to the ram and floppy drive.

Start by pushing these two tabs out, and lifting the drive up.

Then, flip the drive over, and remove the connection cables.

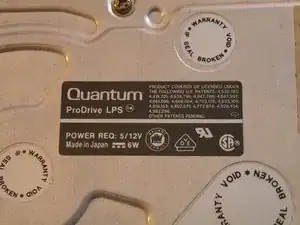

The hard drive: A Quantum ProDrive LPS, made in 1990, and surprisingly, it still works!

This drive has an 80MB capacity, not very large by today's standards, but not bad way back then...

Believe it or not, hard drive construction hasn't changed much in the last 20 years. Other than a few new interfaces, the form factor, 3.5" width and 4-Pin 12V/5V power connector has stayed the same.

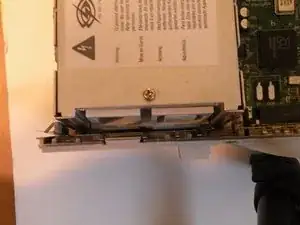

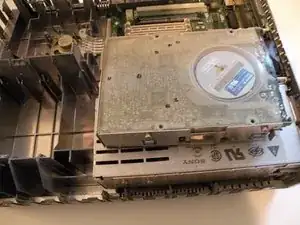

The "SuperDrive" is mounted similarly to the hard drive, and positioned right next to it.

Push these two tabs out, and lift the drive up.

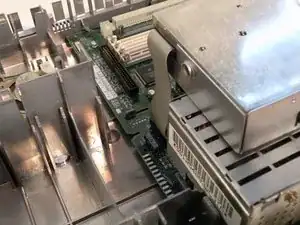

Flip the drive so it is on top of the power supply, and remove the "Red-Ribbon" cable.

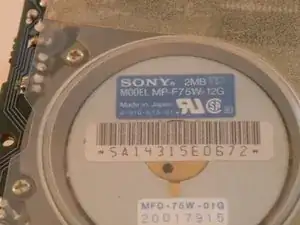

This drive was manufactured by Sony in 1990.

The fan recieves power from two contacts on the logic board and has no connector.

In all of the years that I have worked on this machine, I have found no good way to remove the fan.

The best way to start, is to push in here on the side of the fan.

Being careful not to exert too much force, try to push in, and wiggle the fan outward as such. (2nd Photo)

You can now lift the fan all the way out, and remove it.

The Fan Power Contacts on the Logic Board:

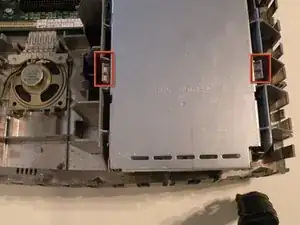

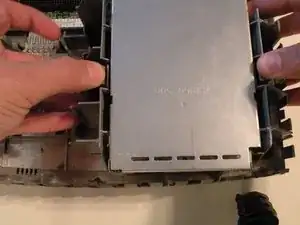

To remove the power supply, squeeze these two tabs and lift the front up.

On the back of the power supply, there is a tab that also must be pressed to remove the power supply fully. You can then lift it out all the way. A firm tug may be necessary to seperate the power connector.

Information on the power supply:

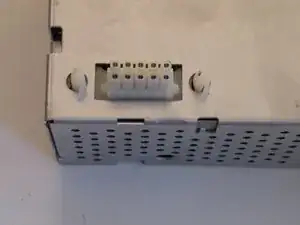

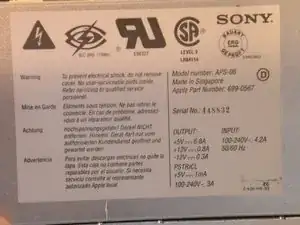

It was made by Sony in 1990, and uses a 10-Pin power connector.

The logic board is designed in a way, where it can be slid forward, then lifted out.

To remove the board, push these two tabs outward, and begin to slide the logic board away from the back (Port Side) of the computer.

Once the logic board clears the ports it can be lifted out.

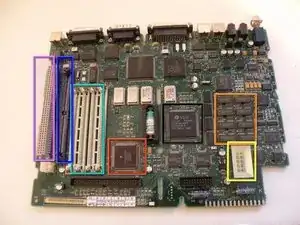

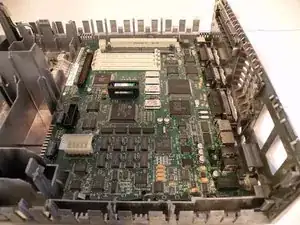

The Processor: 20Mhz Motorola 68030 model # MC68030RC20B

The Onboard RAM: 1MB Soldered the the logic board.

RAM Slots: 4 30-Pin DIMMs installed in pairs.

ROM SIMM Slot: If your computer doesn't have one if these (and it works) , it doesn't need one. If it has one, it needs it in order to boot.

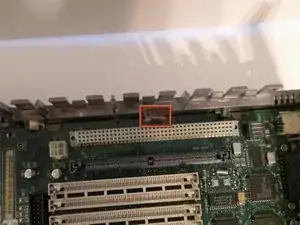

PDS Slot: For Attaching a riser card containing a math co-processor. A PDS card can then be plugged into the riser card. PDS - Processor Direct Slot

Power Supply Connector: for direct connection to the power supply.

"VSLI" chip: This machine's equivalent of a "Northbridge" It manages RAM, PDS, and the external ports.
