Disassembling Macintosh IIsi System Fan

Geschrieben von: Chris Green
  • Kommentare: 2
Disassembling Macintosh IIsi System Fan

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

The Macintosh IIsi has a case fan mouted on inside back of the computer case.

  1. 1UCQiPuD3stfXhHU

    • The fan recieves power from two contacts on the logic board and has no connector.

  2. wfYE1QMgfyMYx6Jh
    wfYE1QMgfyMYx6Jh
    WIUDHAmCbehQYa2j
    UsB4jrGapO2fK3yp

    • In all of the years that I have worked on this machine, I have found no good way to remove the fan.

    • The best way to start, is to push in here on the side of the fan.

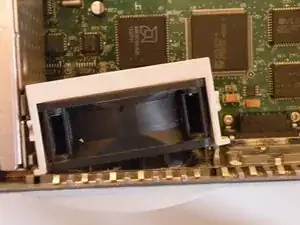

    • Being careful not to exert too much force, try to push in, and wiggle the fan outward as such. (2nd Photo)

    • You can now lift the fan all the way out, and remove it.

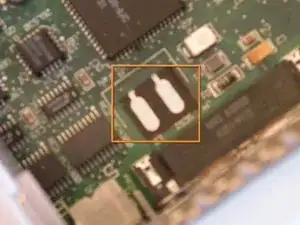

    • The Fan Power Contacts on the Logic Board:

    There is no need to pull out the fan. Just take a knife and you can squeeze the tab in step 7

    Willy Kaiser -

    I wanted to second what Willy said; as far as I can tell one is intended to remove the PSU before the fan. You just jam something the right width in between so the PSU tab is depressed, pull it out, and after the PSU is out removing the fan is easy.

    Caleb Hansberry -

Abschluss

To reassemble your device, follow these instructions in reverse order.
