Einleitung
The Circuit board has the screen and microphone attached, but the speaker and antenna can be modified separately.
Ersatzteile
-
-

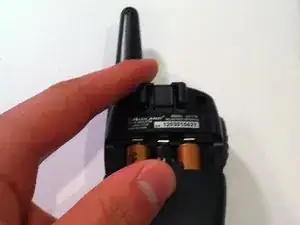

First, apply pressure with your thumb on the top of the battery cover.
-
Next, pull down on the cover until it begins to slide.
-
-
-

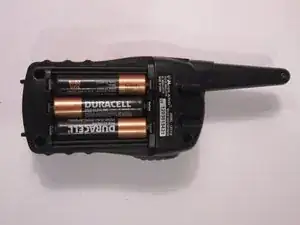

Finally, once the cover is completely off, pry up the old batteries with your finger or a strong, skinny tool (i.e. spudger).
-
-
-

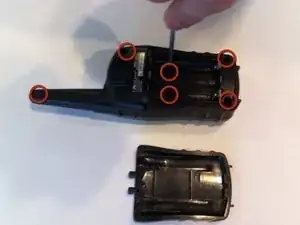

Unscrew the six 8.0 millimeter long, #0 screws on the backside of the case using the Phillips #0 screwdriver.
-
-
-

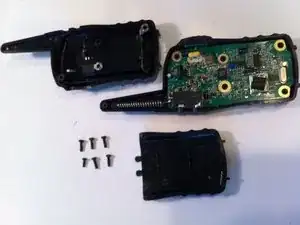

Remove the old or broken circuit board from the front case.
-
Clip the red and black wires at the base of the motherboard to completely separate it from the radio case.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
