Disassembling Minolta Maxxum STsi Top Cover

Geschrieben von: Brady Hill
  • Kommentare: 2
Disassembling Minolta Maxxum STsi Top Cover

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

25 Minuten

Einleitung

Many important components can be reached once the top cover is removed. To take off the top panel, it is also necessary to take off the bottom and right side panel.

  1. T23EedZ3fAxVp3VE

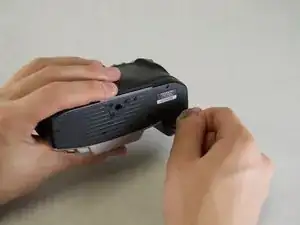

    • Use the edge of a coin to twist open the battery compartment on the bottom of the camera. (Twist counterclockwise)

    My used one had a pair of CR2 batteries in it, not a AA battery.

    Please revisit the battery type.

    W. S. SCOTT BOYD -

  2. O1uVgZLaYuPmaqB2

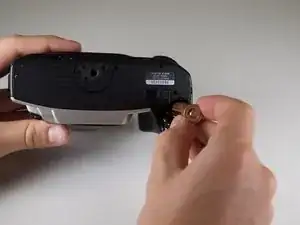

    • When the compartment opens, pull the AA battery out of its slot.

    My used one had a pair of CR2 batteries in it, not a AA battery.

    Please revisit the battery type.

    W. S. SCOTT BOYD -

  3. ZhPSdIpKrJVpSgkO

    • Remove the black Phillips #00 5mm screw at the bottom of the battery chamber.

    • If it is too dark to see the screw, it may help to use a flashlight.

  4. f6i3tdvUUXnoLINN

    • Take out two silver Phillips #00 5.0 mm screws on each side of the viewfinder.

  5. cIYXXUvkujBKtNDR

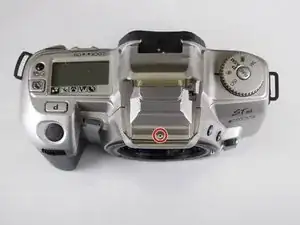

    • Open the flash and take out the silver Phillips #00 4.0 mm screw underneath it.

  6. DLHyGNjcFEq5m3PZ

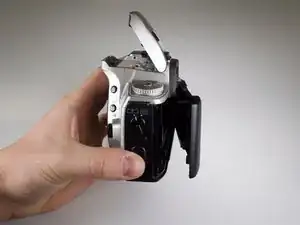

    • Open the back-cover of the camera using the back-cover release found on the lower right side of the camera.

  7. A2qhfFlIvhsOmSGT

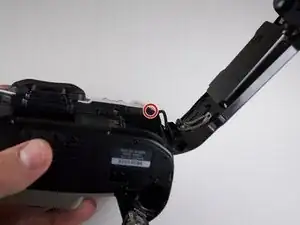

    • Remove the black Phillips #00 4.0 mm screw from the inside top right section of the camera.

  8. 2mJfMfdcd5kUaU6T

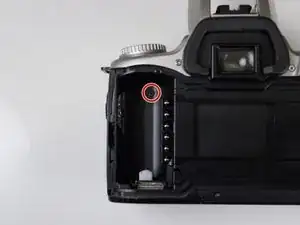

    • Remove the black Phillips #00 5.0 mm screw from the back of the film compartment.

  9. gaAUs6j1ywuDQ25r
    gaAUs6j1ywuDQ25r
    RtQELaDOuIUoFfXM

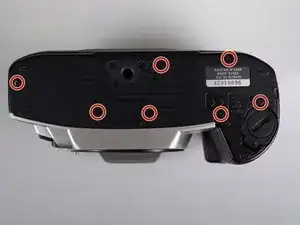

    • Remove the seven black Phillips #00 5.0 mm screws from the bottom panel. The bottom panel is now free to come off.

  10. QmgPsSXcZyBZkXWC

    • Take out two black Phillips #00 2.5 mm screws on the right side panel of the camera.

  11. B3I3AwqkhpVMS3l3
    B3I3AwqkhpVMS3l3
    kJHfb1PVEWmdbGXl
    uWDcYFWAHEGCfxgV

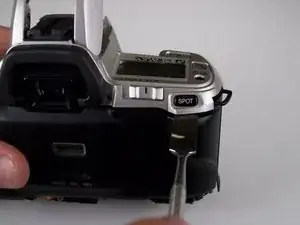

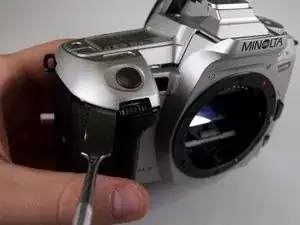

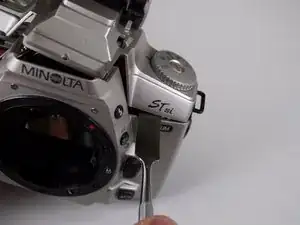

    • Starting beneath the "SPOT" button, use the round side of the metal spudger and firmly pry underneath the grey top panel of the camera. Work your way counterclockwise around the camera prying at different spots until the top panel starts to come loose. Pry all the way around until you reach the "STsi" logo.

    • This prying will not completely release the top cover. It is also necessary to take off the side panel, as explained in the next step.

  12. YKCaqrNWuGWp2gsV
    YKCaqrNWuGWp2gsV
    FSmukF2RNuEgR3rn

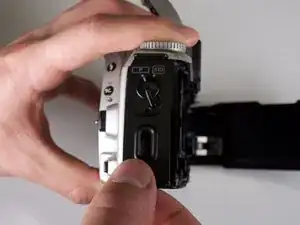

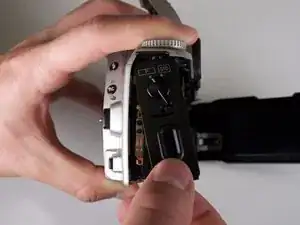

    • Be careful when removing the right side panel. There is a plastic component underneath the side panel that will come free. Note the orientation of this plastic component for reassembly because it is connected to the back-cover release switch.

    • Also be gentle when removing the top panel because it is delicate and is connected by wires.

    • Carefully remove the right side panel by grasping it at the bottom and rotating is counter-clockwise. The top panel is now free to snap off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
