Disassembling Motorola V180 Connector ribbon/inside screen cover

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Disassembling top half to get to connector ribbon, inside screen, and speaker.

  1. 4P1QcDFR2aNlFUaU

    • Pull at top of faceplate, and it will pop off.

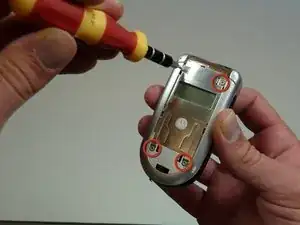

  2. 2ItnqZkSaR2RKBA6

    • Unscrew four screws on front cover.

  3. ddGWrjgQ26O3DE4E

    • Slide out metallic silver cover.

    • This piece is wedged in tight. Try to slide out one hook at a time, instead of both simultaneously.

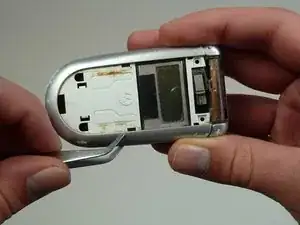

  4. n4Pdgfw4TtCLvgfe

    • Use a tool to wedge in between the silver and black parts on the cover.

    • Silver part should now snap off.

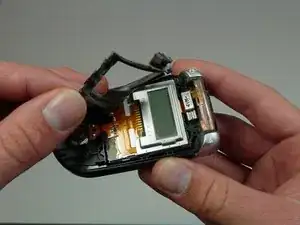

  5. S4aEHhRWFftrl6cD

    • Black rubber part may now be easily removed.

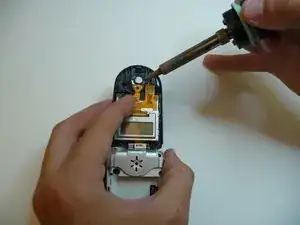

  6. jYtAN2wb3jBA2Mkn

    • Use a soldering iron to disconnect the connector ribbon from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
