Disassembling Motorola i90c Keypad

Slide the notch downward while pulling the back cover off to remove it.

Use your fingers to push the battery upward from the bottom.

Lift upwards to remove the battery.

Unscrew the antenna in a counter-clockwise fashion.

Remove the aluminum cover.

Unscrew the 3 screws shown.

Lift up the right part of the Nextel logo and unscrew the screw underneath.

Gently lift the back cover off.

Carefully pry off the connection between the headphone jack and logic board.

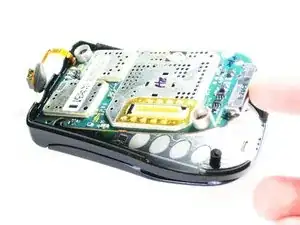

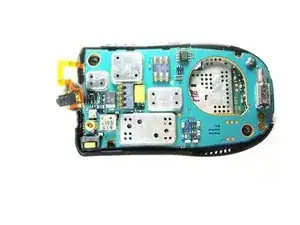

Lift the first logic board off of the rest of the device.

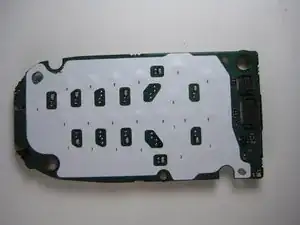

Gently lift the second logic board from the rest of the device.

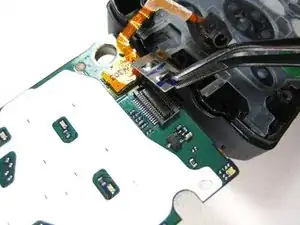

Using tweezers, carefully pull off the connector shown.

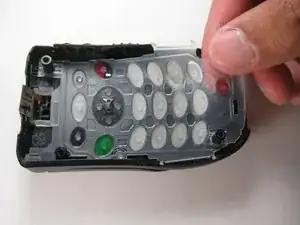

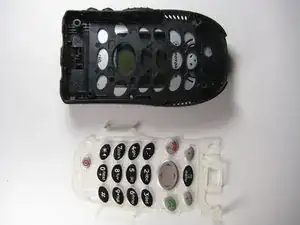

Remove the keypad buttons off the front cover of the phone.
