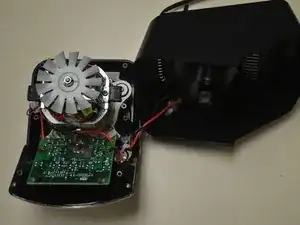

This guide will serve as a prerequisite for most replacement guides. In order to access internal components that need replacing, the cover on the bottom of the blender base must be removed. This is a simple process that involves the removal of a total of 11 screws and 3 layers of plastic molds. The screws can be removed with a Phillips #2 screwdriver.
Werkzeuge
-
-

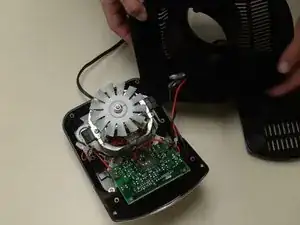

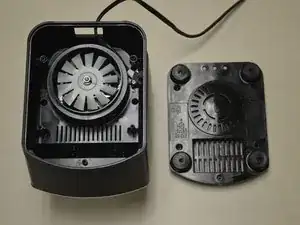

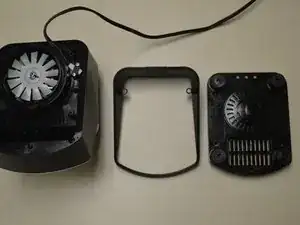

Without removing any screws, you can pull the 2nd layer free from the base. Do this now and set it down gently next to the base.
-

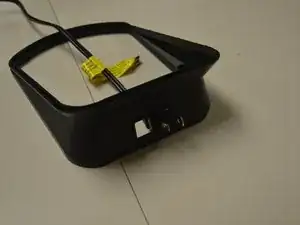

The power cord runs through a hole in the side of this layer. Squeeze the cord and pull it through the hole to separate the layer from the cord.
-
-
-

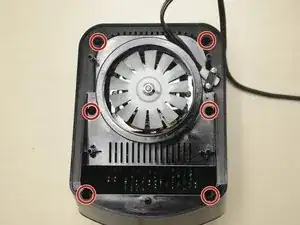

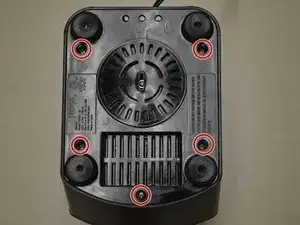

Using the Phillips #2 screwdriver, remove these six screws (13mm long, 6mm head diameter). Then carefully remove this layer, and rest it next to the blender base.
-
To reassemble your device, follow these instructions in reverse order.
