Disassembling Nintendo DSi Bottom case

Geschrieben von: rjcamero
  • Kommentare: 0
Disassembling Nintendo DSi Bottom case

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide has been updated by iFixit staff! Read the new, official guide here.

A guide on how to disassemble the bottom case assembly, including removing the LCD and buttons.

  1. g6dlRVZpjEeBlDqS

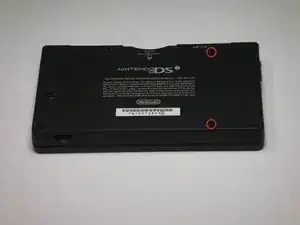

    • Loosen the two screws on the battery panel. Then lift the panel up to remove it.

  2. ZKKCp1kR1lAijwch

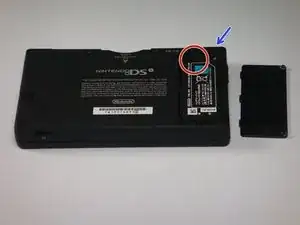

    • L Button.

    • Top of the battery pack.

    • To remove the battery pack, place your fingernail or a spudger at the top of the battery near the L button. Gently lift the battery out.

  3. ukOUjU2VjZKDFAbq
    ukOUjU2VjZKDFAbq
    JOOYjwMsyvXXYVjD

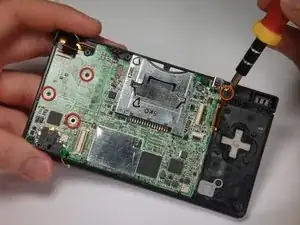

    • Remove 4 Phillips screws from the board.

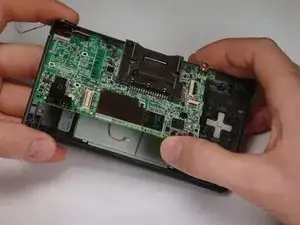

    • Lift the main board from the bottom end and flip it over to reveal the last connector.

    • Keep the main board fairly close to the case, making sure not to damage the last ribbon cable holding it in place.

  4. QpOGrUCsd6C4JcW2

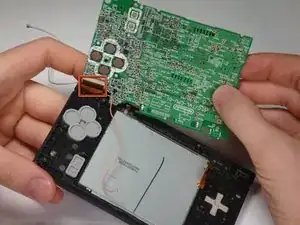

    • Disconnect the ribbon cable by gently using a plastic opening tool to flip up the black connector latch. The cable should easily slide out from the connector.

    • The motherboard should now be free from the rest of the device.

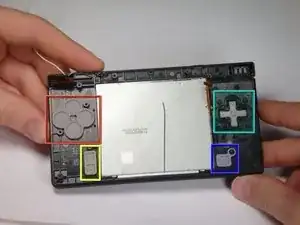

  5. OsgPDQFTgVm21XIo

    • Remove the rubber front-panel button membranes from the device. Pay careful attention to where the buttons go, so you can replace them correctly.

    • A/B/X/Y button assembly

    • Select/Start button assembly

    • D-pad

    • Power button

  6. crNbfwOk4BCMf5nk
    crNbfwOk4BCMf5nk
    YLgC5WpnQUOTska2

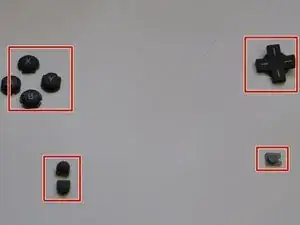

    • Remove the plastic buttons and keep them in a safe place.

    • All of the buttons have "key" notches to prevent them from being inserted incorrectly (backwards or in the wrong place), but it can take a while to figure out where everything goes if they get shuffled around.

  7. jA2vQQouUJ4vpVCs
    jA2vQQouUJ4vpVCs
    pUohmvdWMyHabrEW

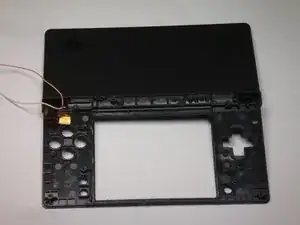

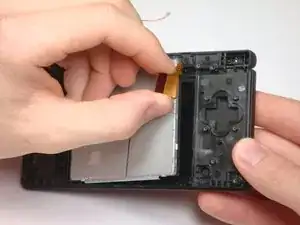

    • Flip the case open, and push the lower screen assembly out of the frame.

Abschluss

To reassemble your device, follow these instructions in reverse order.
