This guide helps you remove the display from the phone.
Werkzeuge
-
-

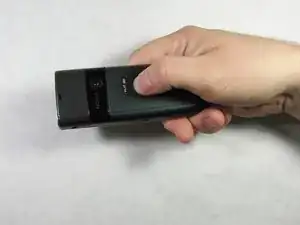

Using your thumb, apply pressure to the battery casing (below the camera). Firmly pull towards the bottom of the phone.
-

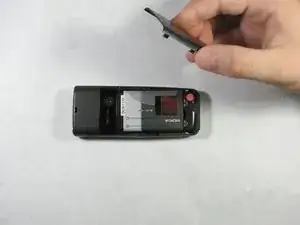

Lift the battery case off of the phone.
-
-
-

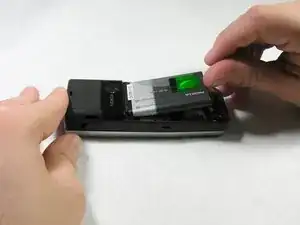

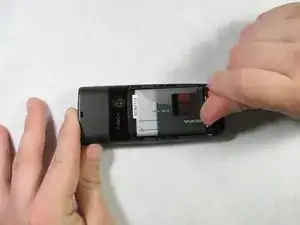

Use your thumb to get underneath the battery and pull up and out from the bottom of the battery tray.
-
The battery should lift out with minimal resistance.
-
-
-
Locate the notch on the bottom right corner of the phone.
-

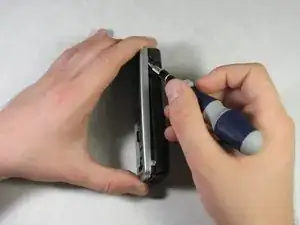

Slide the head of the screwdriver between the front silver casing and the black back side of the phone.
-
While inserted, slide the screwdriver towards the top edge of the phone.
-

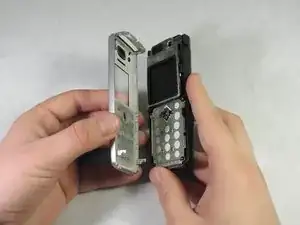

The front casing should eventually pop off.
-
-
-

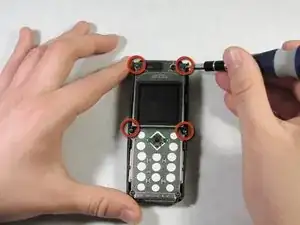

Use the flathead screwdriver to remove four screws on the upper half of the phone.
-

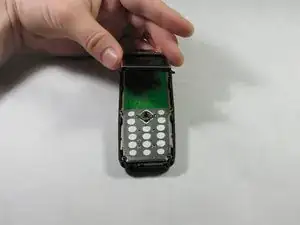

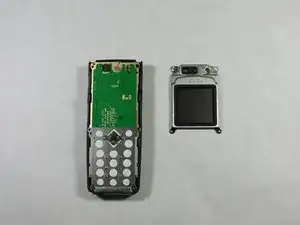

Lift the LCD up and off.
-
To reassemble your device, follow these instructions in reverse order.
