Einleitung

This guides you through removing the keypad.

  1. qcrtIPZ2DuAGwmCX
    qcrtIPZ2DuAGwmCX
    QZLyNt3L2ufZLnEk
    • Using your thumb, apply pressure to the battery casing (below the camera). Firmly pull towards the bottom of the phone.

    • Lift the battery case off of the phone.

  2. OtXNfNVNjVeDqoJS
    OtXNfNVNjVeDqoJS
    R4vIGkwkhCRhM3t2
    UHAU2QHkiSDSJPQe
    • Use your thumb to get underneath the battery and pull up and out from the bottom of the battery tray.

    • The battery should lift out with minimal resistance.

  3. ssL3e6mBomNoJsut
    ssL3e6mBomNoJsut
    rEpNdl3csrMNbFSV
    M3q1TtsNOGWItfdF
    • Locate the notch on the bottom right corner of the phone.

    • Slide the head of the screwdriver between the front silver casing and the black back side of the phone.

    • While inserted, slide the screwdriver towards the top edge of the phone.

    • The front casing should eventually pop off.

  4. pPGhDLgJkNEPVr3h

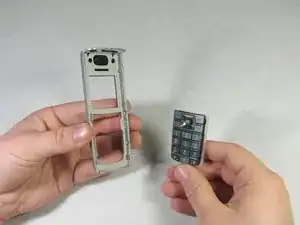

    • With the front casing removed, the keypad can easily be pulled off the back of the front casing.

    • In all probability, it will already have fallen out and no removal is required.

Abschluss

To reassemble your device, follow these instructions in reverse order.
