To access the battery you must remove the back cover. Press the tab on the bottom of the cover in so that the back cover plate can slide over it.
-
Now slide the back cover off of the phone.
-
-
-
Once the backplate is removed, look to the bottom-left corner of the phone where there is a spot to remove the battery.
-
-
-
Remove the four screws securing the front cover to the rest of the phone using a T7 screwdriver.
-
-
-
After the screws have been removed, there is nothing else securing the front cover to the rest of the phone. Simply remove the cover by pulling it up and off.
-
-
-

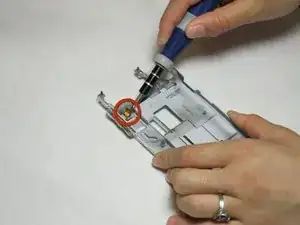

After taking off the casing and keyboard, remove the screws holding the screen in place. Use a T-6 for the screws in the middle of the red circles, and use a T-5 for the screw in the middle of the red square.
-

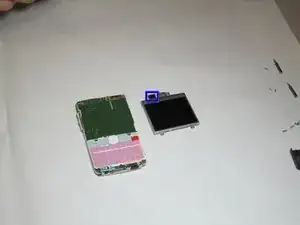

Lift the ribbon off of the contact with the motherboard.
-
When reassembling, firmly press the contacts into place to connect the ribbon and the motherboard.
-
-
-

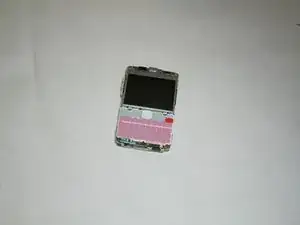

Once the screws are out, gently pull the screen off of the phone.
-

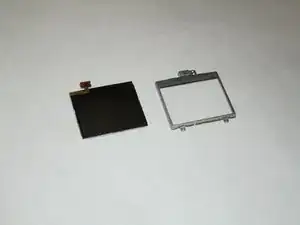

Finally, pull the silver case off to completely free the cracked or damaged screen.
-
-
-

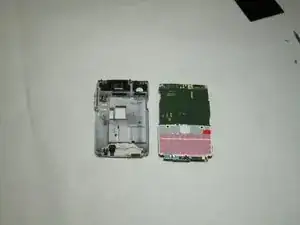

Finally, after the screen and keyboard have been taken off, there is nothing securing the logic board to the rest of the phone. Simply pull the green logic board from the back casing.
-

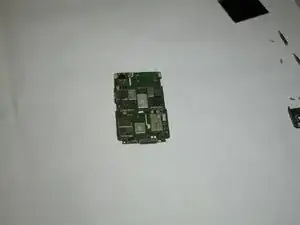

Once free from the back of the phone, the logic board can be replaced by a new one.
-
-
-
The volume control buttons are secured to the frame only by their fit around a small piece of the plastic. Using a small flat-head screwdriver or other flat object, lift the ribbon over this piece of the cover.
-
-
-

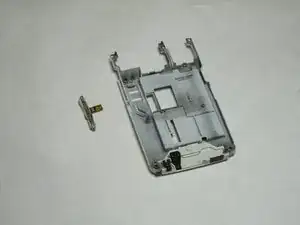

Next, remove the volume control buttons from the cover by pushing or pulling them out away from the interior of the cover.
-
To reassemble your device, follow these instructions in reverse order.
