Disassembling Nokia E71 Complete disassembly

Geschrieben von: Jose Gustavo Abreu Murta
  • Kommentare: 6
Disassembling Nokia E71 Complete disassembly

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

30 Minuten

Einleitung

  1. T6PosiGFHSCsHUXD

    • First remove back cover, battery, chip and memory card .

  2. XbalBWrQNxHVbOoZ
    XbalBWrQNxHVbOoZ
    v3h1rpwdldXWntEk

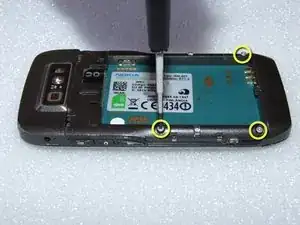

    • Remove 4 Torx T5 screws.

    the Screws can be TX4

    Stephan -

  3. YG1AMTJRX1GIQ2II
    YG1AMTJRX1GIQ2II
    1eaXRwvhWBHXERrC

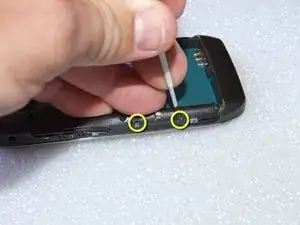

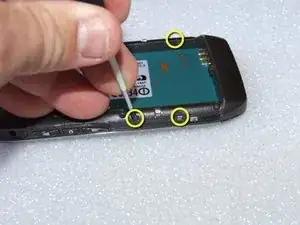

    • Press these four latches (each side has two) to open front cover.

  4. IdhNXDmqGGSBsSaJ

    • Carefully remove the front cover with blade tool.

  5. cSA3FHnCjAgTKdSb
    cSA3FHnCjAgTKdSb
    GSYPV5yqOMGKOrlV

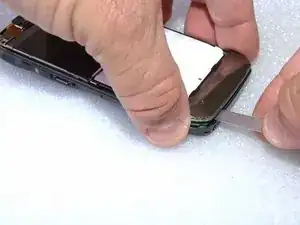

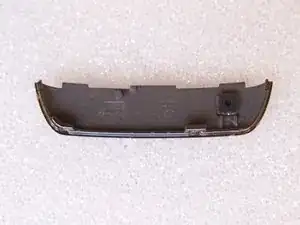

    • Carefully remove the bottom cover. This cover has no screws, only latches.

  6. GYWdIYYbwTh52mME

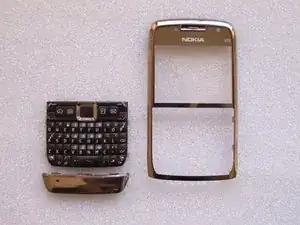

    • Front cover, rubber keyboard and bottom cover removed.

  7. mCXOJYWJOdGuUuBj
    mCXOJYWJOdGuUuBj
    ixW1ZJaoV25raD4x

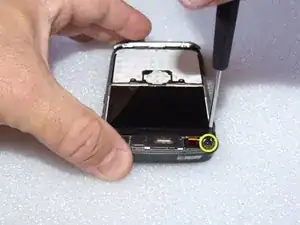

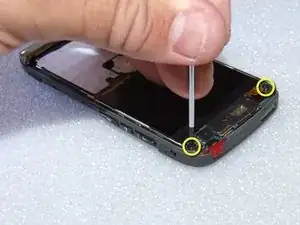

    • Remove these two Torx T6 screws at top of the smartphone.

    These screws can also TX4

    Stephan -

  8. nXN5W4qhBJK2UyXO

    • Carefully remove the assembly. Dont forget to move away the plastic clip holding the assembly down. You can find this in the center on the bottom.

  9. 2nXN6jNPFHwXMpUt

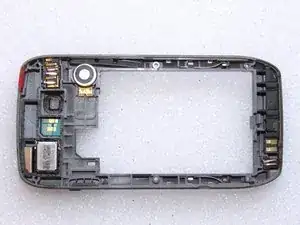

    • Base assembly with small connectors and parts.

  10. kydRvqmfpTloKuHu

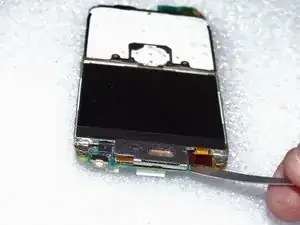

    • Remove the LCD connector.

  11. QibLjXEZINoKGYGl

    • Carefully open the LCD and keyboard assembly, and remove keyboard connector.

  12. QhbD2Hy4DVKM6FMZ
    QhbD2Hy4DVKM6FMZ
    CGcJPQrXHUsnddKM

    • Both sides of the LCD and keyboard assembly removed.

  13. I2aSPxep1huRXmAU

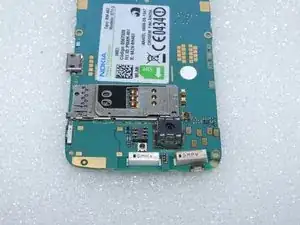

    • I think that two small blocks are the gps antenna.

  14. Xoki3KRW4hHMfX2S
    Xoki3KRW4hHMfX2S
    GW1I221hEOn1GAW2

    • Both sides of battery - for reference only.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jose Gustavo Abreu Murta

Mitglied seit: 07/07/10

4346 Reputation

4 Kommentare

does anyone know if e71 have any battery on board? time and date keep resetting with battery removed.

cyfcyf -

Yes there is, under the keypad, 3/4 of the way down the left side of looking from the front. It is soldered on to the board so take good care.

Samuel Wyatt -

Hi

I have this phone, but I can not charge it ,Because it has short in board ,plus it very short charger soket (female ), i’m use now extirnal charger only

what can i do ?

Dev Abokhadra -

Very clear tutorial !

The pictures are well lit, and the instructions are good :)

Thanks !

James Burton -
