Einleitung

I was fortunate enough to hold one of my users E72's after he dropped it down the toilet "at a party" it did not work at all and the warranty is void, i like taking stuff apart and putting it back together again, so here we go!

  1. k5yFB55IVefE22nM
    • Here's the device before i started prying it open!

  2. Wem3PhNd1jlHKfUe

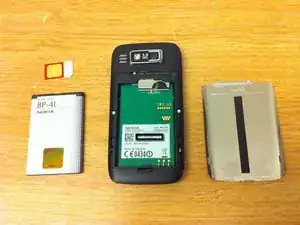

    • Remove metal backplate followed by the battery and then the SIM by pulling the SIM tray downwards. I do like this tray idea, but then again it's another thing that can go wrong with the device..

  3. V3VJnWDv5AM56AKJ
    V3VJnWDv5AM56AKJ
    g1otReD3JekLTYEl
    ljI333EUXjoJVnZ3

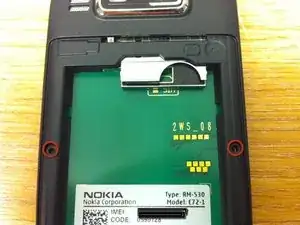

    • There are 2 screws on either side of the casing on the back of the E72.

    • Unscrew both screws using a T5 torx screwdriver

  4. iCEJK6ZxSkpsvJR4
    iCEJK6ZxSkpsvJR4
    JoIFYYJYjsZU2ElS
    GUoZtHxl45V2XFDr

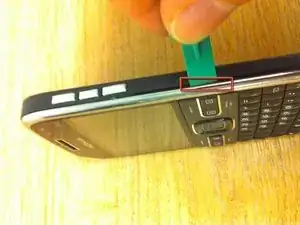

    • I used the opening device to un clip the silver front of the phone by inserting it at the point shown in the image and then running it down the side of the phone downwards (towards the bottom).

    • Rinse and repeat on the other side.

    • Then I ran the opening device carefully round the top edges of the phone, there was a clip at the very top.

    • Pulled the casing apart gently.

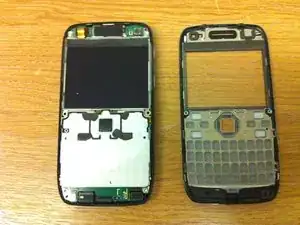

    • I now have the front and back part of the Nokia E72.

  5. EVjdg6QtAbgkNEma
    EVjdg6QtAbgkNEma
    HFRS3nmuY4PUyZa6

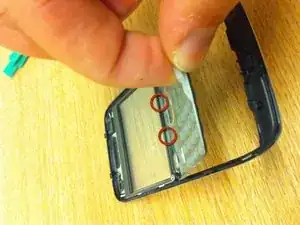

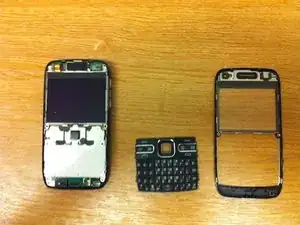

    • I pulled the bottom edge of the keypad upwards, and then down away from the phone.

    • The keypad is latched by two metal connectors on the front face of the phone, when re-assembling make sure to latch them back in correctly.

  6. BSYmoC4JEIQWq6XK
    BSYmoC4JEIQWq6XK
    651XfOyG3xTYV2Mq

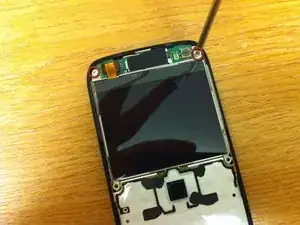

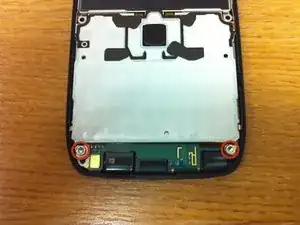

    • I needed to use the next size up of torx screwdriver for this set of screws.

    • Unscrewed the 2 screws on the bottom edge of the phone, this time T6 torx.

    • Followed by the top edge screws.

  7. dIDuxKwP3DihdyrP
    dIDuxKwP3DihdyrP
    fpboLJlhAikWUDVC

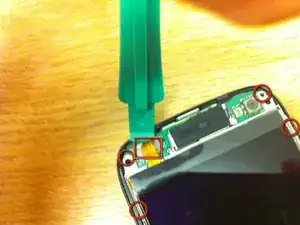

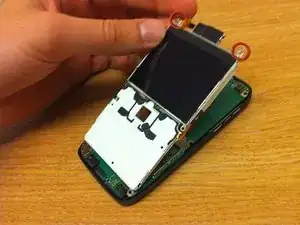

    • The opening device was used to remove the connector for the display from the system board.

    • Then pulled the metal plate away from the system board by lifting the metal connectors circled in the picture and the sides of the screen plate also circled.

  8. GCWoKF4DArHUabbV
    GCWoKF4DArHUabbV
    VEPSTaWwBpMA2aMA
    XDAkiRqNMZPGsiBq

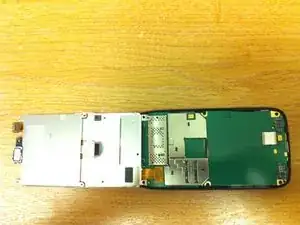

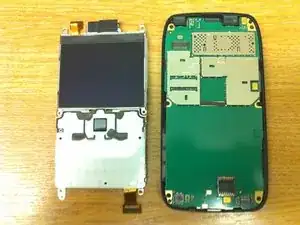

    • I then folded the metal plate over the bottom of the phone.

    • Used an opening device to remove the connector for the keyboard sensor pads.

    • Take away the metal plate from the system board.

  9. twDTfbMgSSirn1GS
    twDTfbMgSSirn1GS
    XsJH6epq4WTZsATd

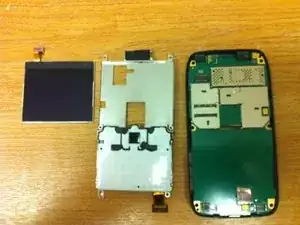

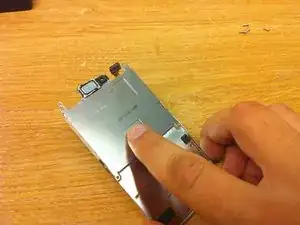

    • To remove the screen from the metal backing plate, apply some pressure to the back of the screen plate that you can see through the metal backing plate.

    • Alternatively I could have used a spudger or opening device to pry the screen away, though that may cause the metal back plate to bend.

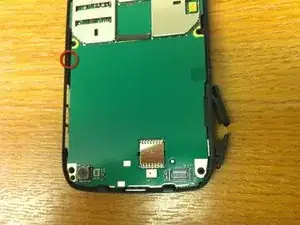

  10. cPxjNeA2huXUImVO
    cPxjNeA2huXUImVO
    ZOGdOUsYKNWrM1Kt
    VhyHMKxxEbmH4Qbd

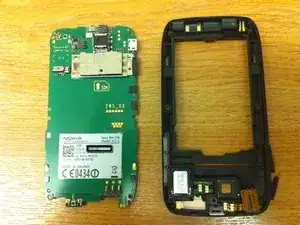

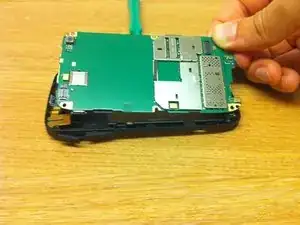

    • I un-clipped the two rubberised connectors for the USB connector and the SD card, this made it easier for the system board to be removed.

    • I used an opening device to lift the system board from right hand side edge of the phone (it comes out easier from this end).

  11. 6WlhJL5lcNEH13hH
    6WlhJL5lcNEH13hH
    vGOlafAxB1HCMoRR
    QtkXfywKy5KZJJIJ

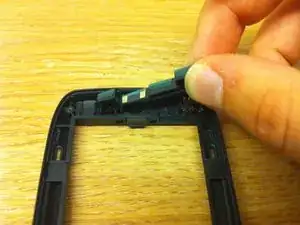

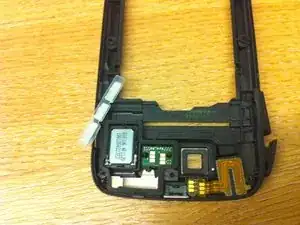

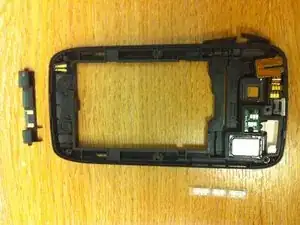

    • Removed the 3 button strip from the right hand side of the device.

    • Remove the microphone housing from the bottom of the device, this piece of kit also looks to be like the antenna looking at the markings and gold plating.

  12. bZKGIKPZlbMQLaBJ
    bZKGIKPZlbMQLaBJ
    jIOZwRpDbWXY25ew
    RyCDnMoFAvFtT64O

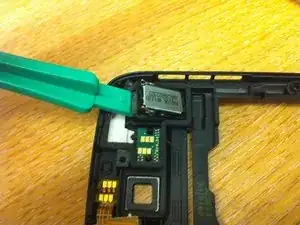

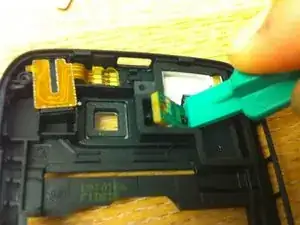

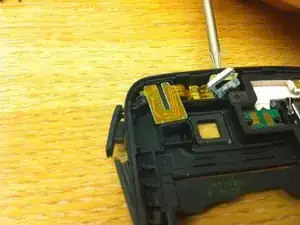

    • Poked the Power button out.

    • Pressed down on the right hand side of the LED flash to remove it.

    • Removed the speakers box.

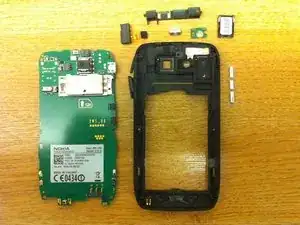

  13. piWPeSXyUGecDUBo
    piWPeSXyUGecDUBo
    5THQSOmaRDN2C6yJ
    MVUqaf1ab1ExSOEq

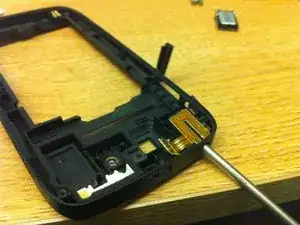

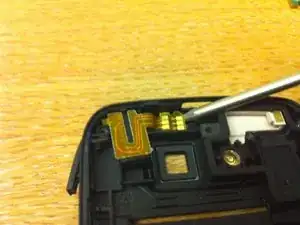

    • Lifted the connector pin pad of the headphone socket, it is glued on by some adhesive foam.

    • Insert object into the headphone socket and force object downwards to remove headphone connector (it pops up at the back), perhaps inserting a headphone jack instead of a screwdriver would have been better!

  14. RQAV111ZnSEqjQUc
    RQAV111ZnSEqjQUc
    Dc1uvmluxd2621FG

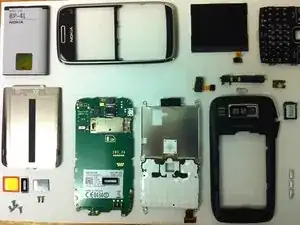

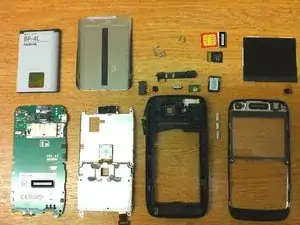

    • Ta-Da! This has to be the easiest phone to dissemble i have ever worked on. Only 6 screws on the entire device.

    The white part on top right was not removed and seems to have some kind of purpose because it has a connector. Also seems to be very difficult to remove.

    Timo -

    Here here. Seems to be welded in there. Not a complete dismantle guide. But great up to this point.

    EDIT just get a small 1.5 flathead screwdriver into the bottom left and gently prise up.

    Stephen Sherry -

Abschluss

Very good device i think personally, with this disassembly you should be able to replace any part in the phone without an issue.

James Stoy

Mitglied seit: 30/07/10

1786 Reputation

3 Kommentare

I have one of these, great tutorial. But on my phone, the screw drives used were one size down (T4/T5). Other than that, great!

Wes -

How do I make up for Mike calls

m.hefzy18 -

But can you assemble it back? Please write about that if you can!

jarkkoface -
