Disassembling Nokia X2-00

Geschrieben von: Mateusz
  • Kommentare: 1
Disassembling Nokia X2-00

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

i'll show you how to tear it down (without removing unnessesary parts like i did)

---------------------------------------------

I'm not professional, so my lighting and photo quality isn't Perfect, i just don't have money to invest

  1. CaugZymcnPg2UYrs

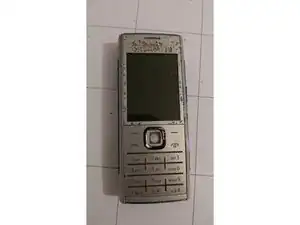

    • it's a cheap low-end Music Phone

    • mine got wet so i decided to clean it up and look inside!

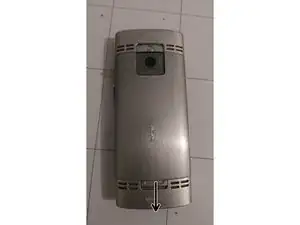

  2. RsaKApExSsN1FKJS
    RsaKApExSsN1FKJS
    U6PCTlnKNjFlfdaI
    RWGZIyv1JLdGKJ24

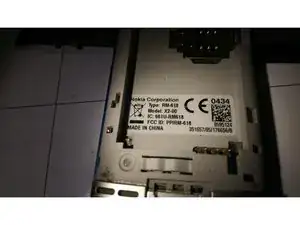

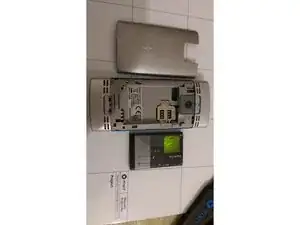

    • Flip it and pull the tab

    • the metal part should jump right off

    • after that remove the battery and sim card

  3. pVnyZsoxsyGwJlI4

    • so i was kinda !#^&@@ off becouse there were no screws!

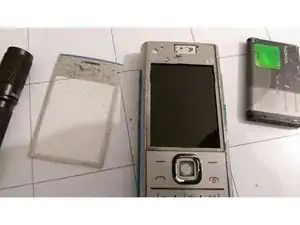

    • so i tryed to remove the screen protection, and it worked!

    • 1. i did break it

    • 2. there were no screws

    • just don't do that unless you need

  4. OssoNcJH1AND6uoN
    OssoNcJH1AND6uoN
    UuRCRApbCDqOhkoh

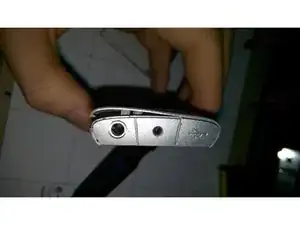

    • i tried to remove the side panels but that didn't work so i tried on top and it did work (Jimmy worked fine)

    • these clips kind of suck ....it takes lot of force to unclip these )

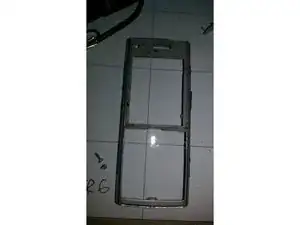

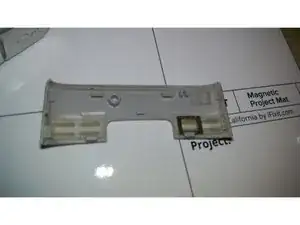

    • after you unclip it you get that piece

  5. GnwP6mLcGIR6CX1X
    GnwP6mLcGIR6CX1X
    pdjql2vtZqZixdtm
    1QeTfhCewBeSH5fV

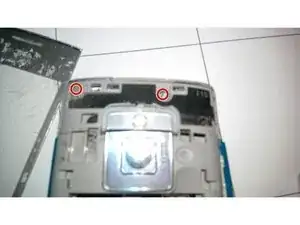

    • remove these 2 TR6 Screws (mine were a bit blue)

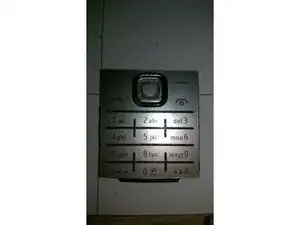

    • open it up (clips on the bottom)

    • i was on Beast-Mode on these annying clips that held like gorilla

  6. U3wTqDT24DDgyl1R
    U3wTqDT24DDgyl1R
    GXdDP5PttQeGaCpm
    T3HpmMMLCSO1FOc2

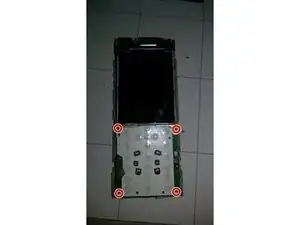

    • Remove the 4 TR6 Screws

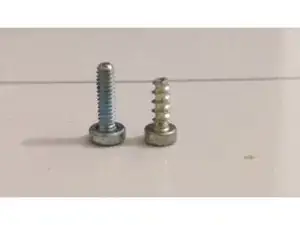

    • They are diffrent from the last ones !!! (this one on the right)

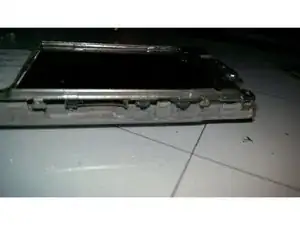

    • remove the whole PCB and remove the clips from the display and it should pop off

  7. c3QvUEhyKWwZvPga
    c3QvUEhyKWwZvPga
    t12ZuwJmYAXqpGfb

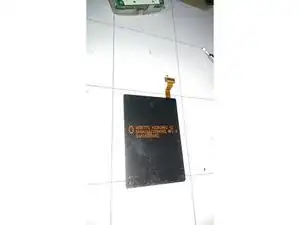

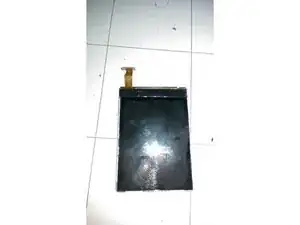

    • it's TFT 2.2" 240x320 182 ppi Display

  8. wGbcQi4deolq5uYV

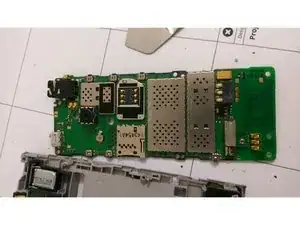

    • anything shiehielded ...and non-replacable ...i don't like that one at all

    • sorry guys i have forgott to make photo of the backside :(

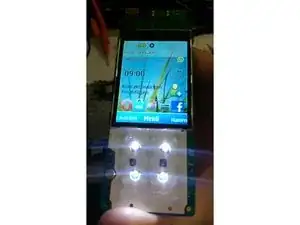

  9. EAuMmPaWDGWl5eqW
    EAuMmPaWDGWl5eqW
    1ArrmRFWN2NB5bIc

    • extra steps that you don't need to do

    • 2 of those fell of and i have NO idea where from (and i don't even care)

    • i cleaned it up and powered it up and it works (just make sure you don't short anything)

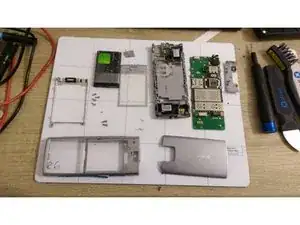

  10. VLNpnK5DjRHRDsKY

    • i don't really like that one becouse it's hard to open and easy to crack plastics

    • but you can replace many things (not anything)

    • i would like USB on doughterboard and less shielding
