Disassembling Olympus Pen E-PL7

Geschrieben von: Kelsea Weber
  • Kommentare: 4
Disassembling Olympus Pen E-PL7

Schwierigkeitsgrad

Moderate

Schritte

56

Zeitaufwand

Keine Schätzung

Einleitung

This guide gives you a look at the major components of the Olympus Pen E-PL7 and provides complete disassembly instructions.

We highly suggest you use a magnetic project mat or an organization tray. This camera has many different types of screws and keeping them organized is key to proper reassembly.

  1. 22oxLFC5aIcoQXee
    22oxLFC5aIcoQXee
    Np1LC2lTUq2SmejQ

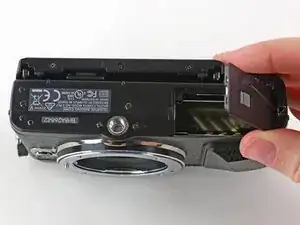

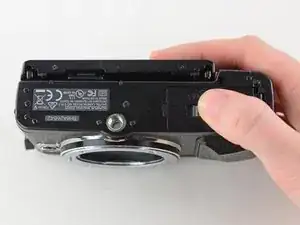

    • Turn the camera upside down.

    • Push the grey tab to the right to open the battery compartment.

    • Pull out the battery.

    • The battery is not shown in these photos.

  2. eLaFUrSnRhVBLKHv

    • Use a Phillips #00 screwdriver to remove the six 2 mm screws on the bottom of the camera.

  3. 45H1KfAqKukZPFGB

    • Remove the two 4 mm reverse threaded Phillips screws from the bottom of the camera.

    • Reverse threaded screws tighten counter clockwise and loosen clockwise.

  4. CyVovF4HvunSvZJ4

    • Remove the two 4 mm Phillips screws under the HDMI port cover.

  5. iS24MTol4sfR2gTQ

    • Use a Phillips #00 screwdriver to remove the 5 mm screw near the left hand grip.

  6. Tnq14bgsPXtBL4lW

    • Use a Phillips #00 screwdriver to remove the 5 mm screw near the right hand grip.

  7. IyDEL5o5iPExv4yW

    • Flip open the LCD.

    • Use a Phillips #00 screwdriver to remove the 2 mm screw beneath the LCD assembly.

  8. ZDAs4EQCGXpXPKY5

    • Use a Phillips #00 screwdriver to remove the four 6.3 mm screws from the lens mount.

  9. oYJYLnFLGnO1Skk3

    • Remove the lens mount with tweezers.

  10. tgV13J13wcbD1CO3

    • Use tweezers to remove the inner metal ring.

  11. OET2DmtIvVfjVZrR
    OET2DmtIvVfjVZrR
    EeIOlIJ4icvZEsqI

    • Use tweezers to remove the two springs lying beneath the inner metal ring.

  12. IBNcX3jqPb3WYFgN

    • Use a Phillips #00 screwdriver to remove the three 5 mm screws.

  13. lrRRFovbQAuWMFci

    • Remove the two 4 mm Phillips screws.

  14. Dr1LZiwCCLgpoEy2
    Dr1LZiwCCLgpoEy2
    awoyfIxZR3lSQhdt
    BEiqQwpZIj1atNTY

    • Press and hold the lens release button while using tweezers to remove the lens hook.

    • Use tweezers to remove the spring underneath the lens hook.

  15. d6kESKpOdqs6p2LN
    d6kESKpOdqs6p2LN
    ygWhCekTbWQtPUQx
    c1UVfBL6JWrITCsi

    • Use tweezers to remove the metal clip from the external flash mount.

  16. mKQGJVYfr3iIMrWv

    • Use a Phillips #00 screwdriver to remove the four 4 mm screws from the external flash port.

  17. 4gtKWOQakQ2LyGsA
    4gtKWOQakQ2LyGsA
    GWMXfGe6xbRMrVFv

    • Remove the second external flash clip with tweezers.

  18. GBNMsWnMSYZvMb4E
    GBNMsWnMSYZvMb4E
    ZNkkcLkDpycWbiO6

    • Remove the external flash port casing to expose five more screws.

  19. em1vVgv4wOGVOdNd

    • Use a Phillips #00 screwdriver to remove the two 6.4 mm screws.

    • Remove the 2 mm Phillips screw.

  20. IBmA3RaHOssE25Bm

    • Remove the two 3.8 mm Phillips screws from the sides of the external flash connector.

  21. ShS3sQ2WNMZPJEZf

    • Gently pull the back case away from the camera.

    • Do not attempt to remove the back case, as it is attached to the camera by a ribbon cable.

  22. lFsGgvysmbICCDoT
    lFsGgvysmbICCDoT
    P2VBZI6LmORMm5qP
    PBB1KCqY2x1fmYOB

    • To remove the ribbon holding the back case to the camera, use the pointed end of a spudger to flip back the top bar on top of the ZIF connector.

  23. 35fQyqxs5GNIlHPD
    35fQyqxs5GNIlHPD
    kR1AkGdpDsel5Zfh
    fEaNL3Y2dQMGKdF4

    • Use tweezers to pull the ribbon out of the connector.

    • Remove the back case.

  24. aNiWpAOiYU3TpwuG

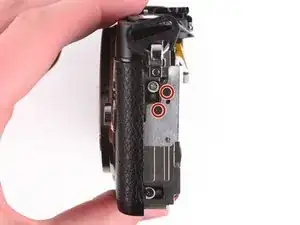

    • Use a Phillips #00 screwdriver to remove the two 1.6 mm screws near the left hand grip.

  25. AuxYa6NhIjeMalnp
    AuxYa6NhIjeMalnp
    JZyTnDVZwa3QOlnJ

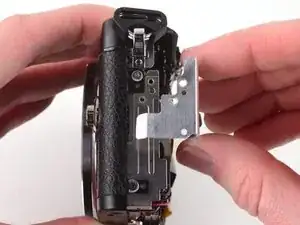

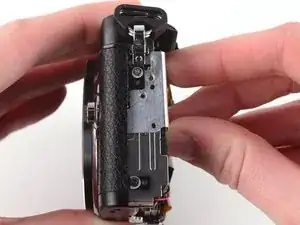

    • Once the screws are removed, use two fingers to remove the metal clip.

  26. RoMmvChMRcic4dVZ

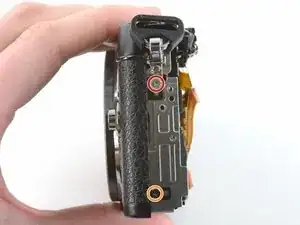

    • Remove the 2.2 mm Phillips screw near the left hand grip, holding a second metal plate in place.

    • Remove the 1.8mm Phillips screw.

  27. KEfvyPvIQBqgZsvj

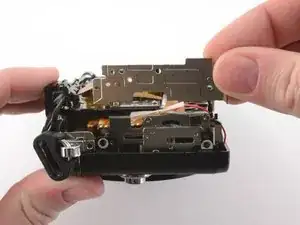

    • Once the screws are removed, use two fingers to remove the metal plate.

  28. TsGKFrnNpKZBs1mU

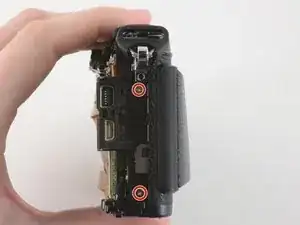

    • Remove the two 4.1 mm Phillips screws near the right hand grip.

  29. 6YG1iVgcR4slOGHS

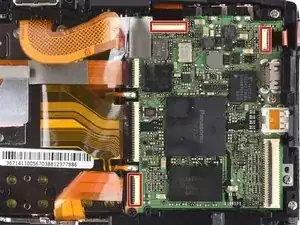

    • Use a spudger to remove the three indicated ribbon cables from their ZIF connectors on the motherboard.

  30. XghqXKXYLOBJwc6H
    XghqXKXYLOBJwc6H
    BriAXUWiwnfHYfLc
    EWpChXNfHqKwv3Ph

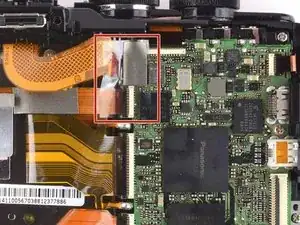

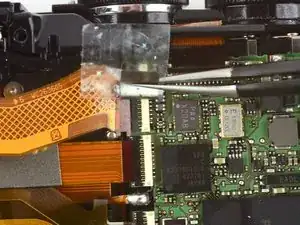

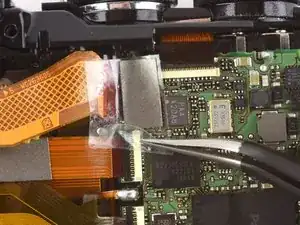

    • Use tweezers to remove the plastic cover from the two ZIF connectors in the upper left corner of the motherboard.

    • Disconnect both ribbon cables.

  31. 4DudubkOEWqkbyDc
    4DudubkOEWqkbyDc
    Y2Q4JVRAHdNubxKI
    GrnLPuBDuY3QnDJK

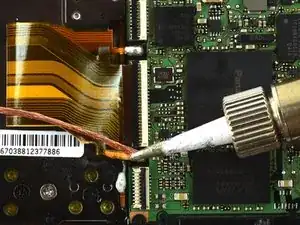

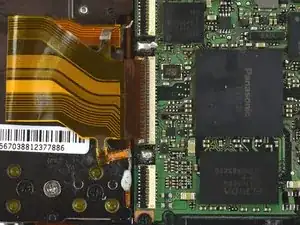

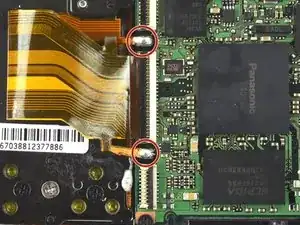

    • Desolder the large ribbon cable from the motherboard at the solder points on either side of its ZIF connector

    • Learn more about soldering with iFixit's Soldering Technique Guide.

  32. CN2trZkoClrB61Kb
    CN2trZkoClrB61Kb
    AQSWXW5G1R5VYIO6
    W4HwOYfr33PZYcwT

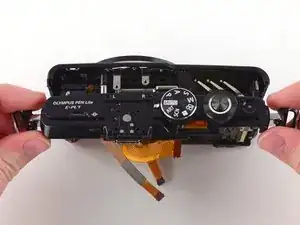

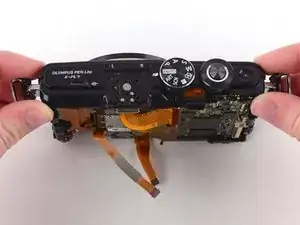

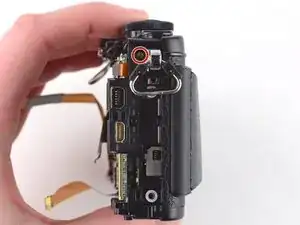

    • Remove the 5.2 mm Phillips screw from the top of the right hand grip.

    • Remove the top plate.

    What is under the top plate? How many parts are replaceable. Switch button? Can you photograph one next time . Thanks

    om1gc -

  33. uRDLZTWjyKyGcCMW
    uRDLZTWjyKyGcCMW
    1WLwrkaYGkt2iS3w

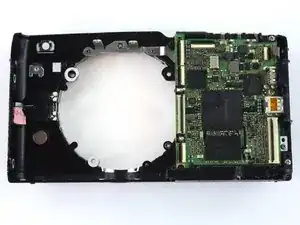

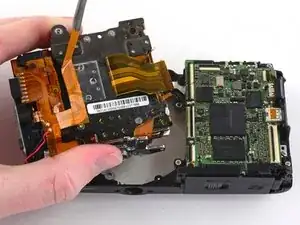

    • Remove the sensor assembly from the front case.

  34. puJKY6xcgU5Xqreu

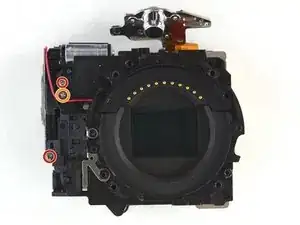

    • Remove the two 4.3 mm screws from the front of the sensor assembly.

    • Remove the 6.8 mm screw.

  35. sAMf52nBLhYbYNvj

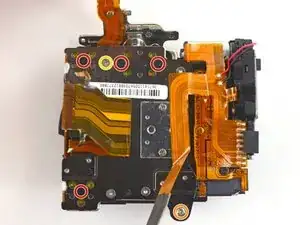

    • Remove the four 1.9mm Phillips screws from the back of the sensor assembly.

    • Remove the 14.5mm Phillips screw.

    • Remove the 3.3mm Phillips screw.

  36. YKLEl5WZsMD1LPkn
    YKLEl5WZsMD1LPkn
    MxEaKrJrp2koCL2H
    xrJJUqL5LcTetAFS

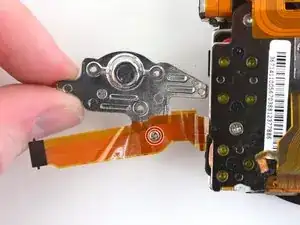

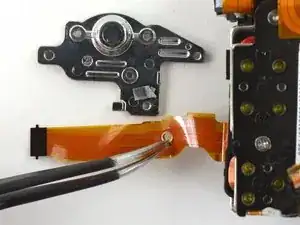

    • Use a Phillips #00 screwdriver to remove the 1.7 mm screw securing the tripod mount to the ribbon cable.

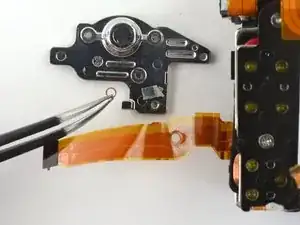

    • Use tweezers to remove the small copper ring underneath the screw.

  37. UlwdJH3kEKGYXnQ1
    UlwdJH3kEKGYXnQ1
    6P6SRHliFCFwQnpo
    uJDIMToa5lRsasPH

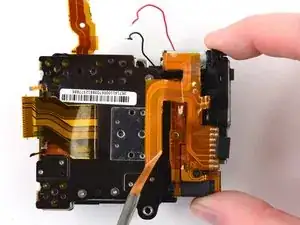

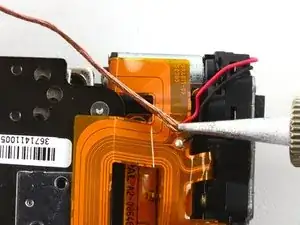

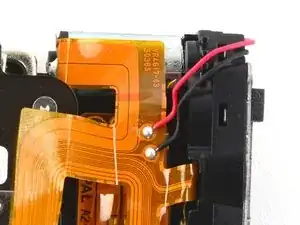

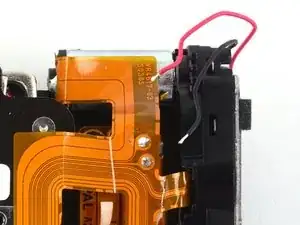

    • Desolder the red and black wires from the back upper right corner of the sensor assembly.

  38. RZTgKas2rBwDETVY
    RZTgKas2rBwDETVY
    d2md6LrJi3BnEEwZ
    v1yIjtq4Nb5aODCs

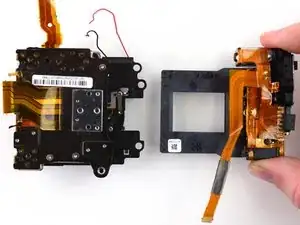

    • Pull the sensor frame away from the sensor assembly.

  39. 1bfxyKFCvA6UTiXB

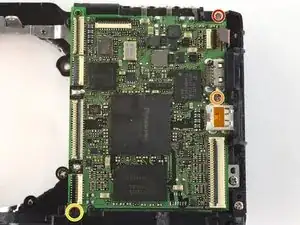

    • Remove the 4.4 mm Phillips screw securing the motherboard to the battery compartment.

    • Remove the 3.8 mm Phillips screw.

    • Remove the 3.7mm Phillips screw.

  40. S6rTEQPJmoAKCUPG

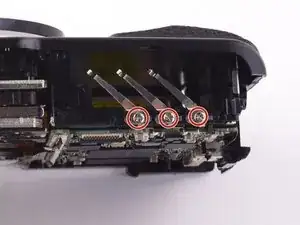

    • Remove the three 3.3 mm Phillips screws at the top of the motherboard.

  41. wLnSqIqPdERbnUtb

    • Remove the 3.4 mm Phillips screw from the left side of the motherboard.

  42. QBxnoTNRg2SSWEYE

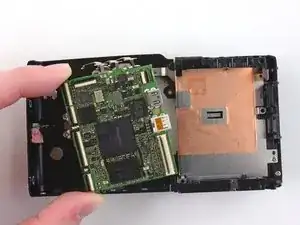

    • Remove the motherboard.

  43. rDTRyRfRZdSumDeT
    rDTRyRfRZdSumDeT
    uLuTR5tljuplCtFa

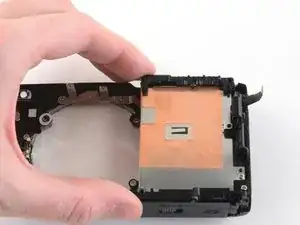

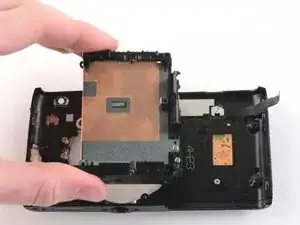

    • Remove the battery compartment by hand.

  44. 5THGqLhb4eGSc3Ud

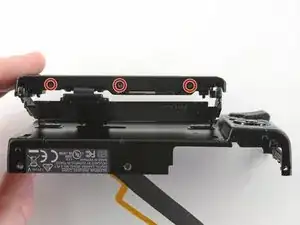

    • Use a Phillips #00 screwdriver to remove the three 2.3 mm screws from the base of the LCD screen.

  45. 1hODnlOr4QySBAWZ
    1hODnlOr4QySBAWZ
    5P6FGpHPrgxax3av

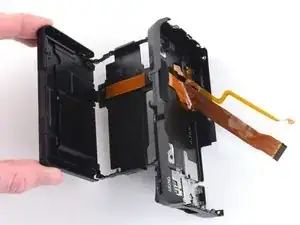

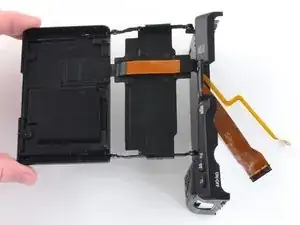

    • Fully extend the LCD.

  46. Vra2M13BMJWOd2hh
    Vra2M13BMJWOd2hh
    VK2YcJixEk3EXKg4
    2dxrKLCjlZgsdRVf

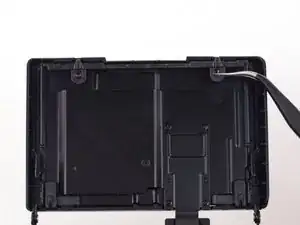

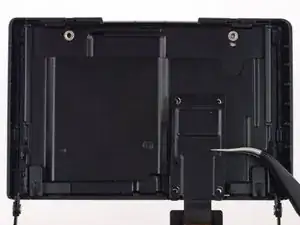

    • Remove the two 2.2 mm Phillips screws located on the back of the LCD screen.

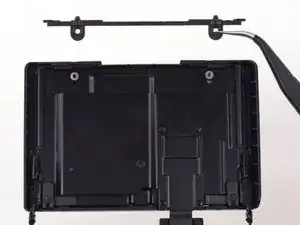

    • Use tweezers to remove the top bracket.

  47. 2eyARVDyKLbCrVpd
    2eyARVDyKLbCrVpd
    hIWVwm1RHiI6tn6K
    ZgLHAPEZGiBiRVd6

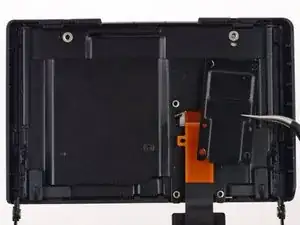

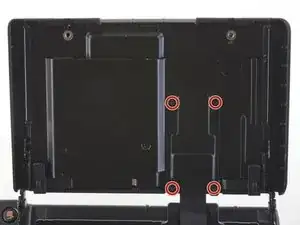

    • Use a Phillips #00 screwdriver to remove the four 1.4 mm screws from the back of the LCD screen.

    • Remove the LCD ribbon cable with a pair of tweezers.

    • The cover may simply fall off after the screws have been removed.

  48. eDXTPk2k3WpaMEgX
    eDXTPk2k3WpaMEgX
    ttoEDgCbNVSJikDP
    m4BOnNjecJQriHA2

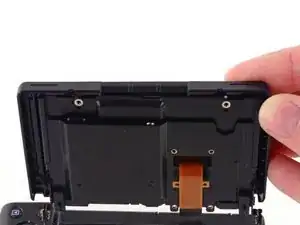

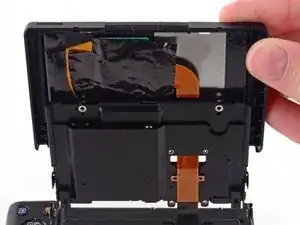

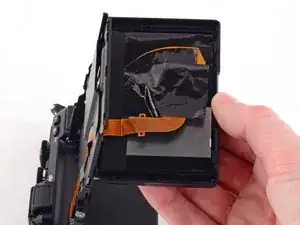

    • Carefully lift the LCD screen up and away from the assembly.

    • Do not attempt to fully remove the screen, as it is attached to the assembly by a ribbon cable.

  49. oJSNfmKaRZqxKQ5V
    oJSNfmKaRZqxKQ5V
    dDXoyLGGioWAg1Rt

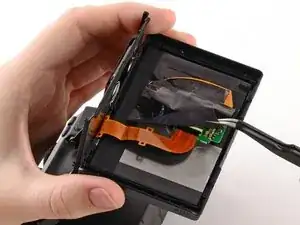

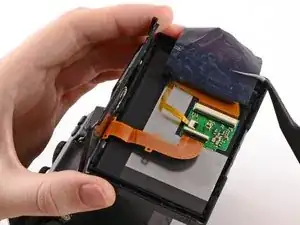

    • Use tweezers to remove the plastic covering the LCD ribbon cable.

  50. RXUcVKPgOZaUNkKy
    RXUcVKPgOZaUNkKy
    tHpaLBpfyi21Ql1J
    hNHtBQNJEDCprchS

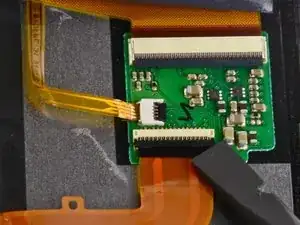

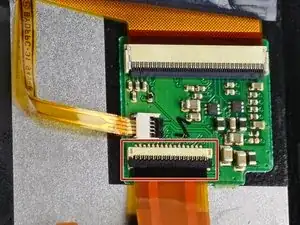

    • Use the flat end of a spudger to flip back the black bar on the ZIF connector.

  51. RayjKfwrSJ2KYVTK
    RayjKfwrSJ2KYVTK
    EYFwZDde45YfPo3C

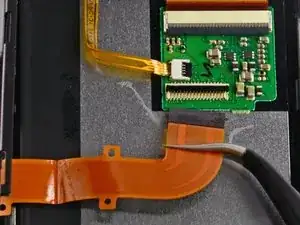

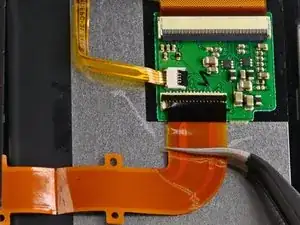

    • Gently pull the ribbon cable out with tweezers.

  52. bkLLBxeTwCiGELdv

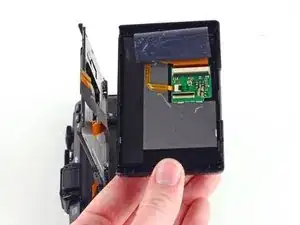

    • Remove the LCD Screen.

  53. CK4TJwWrWT5regaT
    CK4TJwWrWT5regaT
    xnLQnZjikg2RVOJk

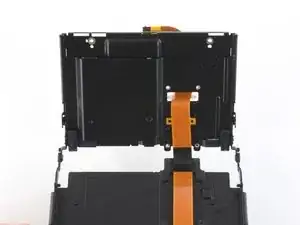

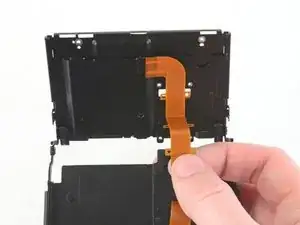

    • Pull the ribbon cable through the hole in the LCD assembly.

  54. dAanokxCFw1T13gK

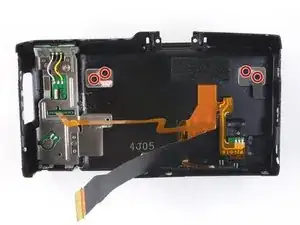

    • Remove the four 2.4 mm Phillips screws from the inside of the back case.

  55. HXGT4LSvKfmWmWAi
    HXGT4LSvKfmWmWAi
    Nx2NJLbRUcBN2wJ4

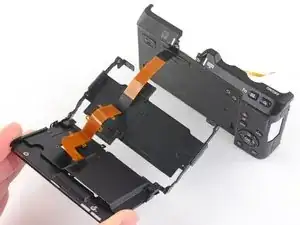

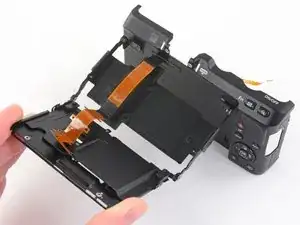

    • Pull the LCD assembly away from the back case.

  56. UJIiID5LxQhUoZmm

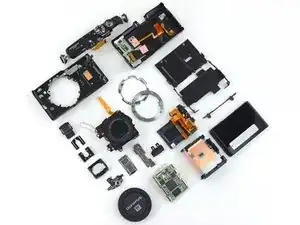

    • You have successfully disassembled the Olympus Pen E-PL7!
