Einleitung
If the front slider on the camera is cracked or broken, use this guide to remove and replace it.
This guide is also a prerequisite for disassembling other parts of the camera in order to prevent damage to the slider, and to make dis-assembly easier.
Werkzeuge
-
-
Locate the 2 screws on the bottom of the slider.
-
Remove both screws with a #00 Phillips screwdriver.
-
-
-

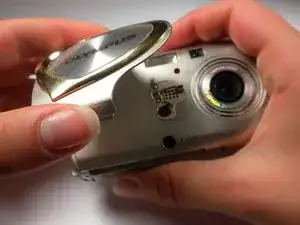

Gently pull on the bottom of the slider until it comes off the lower track.
-
There is a little piece that connects the slider to the track. Be sure not to lose this as it is needed to put the slider back on.
-
To reassemble your device, follow these instructions in reverse order.
