Einleitung
Use this guide to remove the side panels to access parts inside.
Werkzeuge
-
-

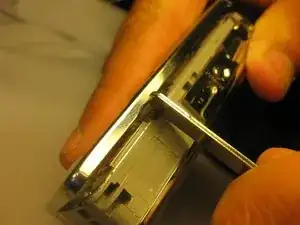

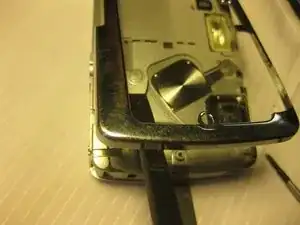

Remove the battery by placing your thumb on the bottom flap and sliding the release button away from the side the lens is on. (The screwdriver is simply used as a reference point, no screws need to be removed)
-
If the battery is dead, charge it for 60-90 minutes.
-
-
-

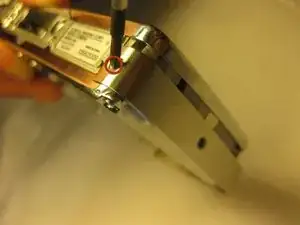

Remove the top screws using a 1.5 mm screwdriver.
-

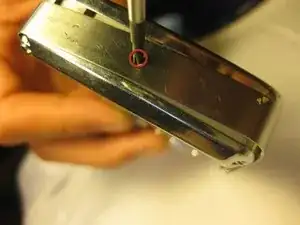

Remove the single side screw located on the side of the camera where the tab is, using a #00 screwdriver.
-
-
-

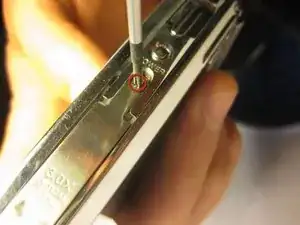

Using a #00 Philips Head Screwdriver, remove the screws located on all four sides of the camera.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
