Disassembling Onkyo TX-800 Top case

Geschrieben von: Michael Lady
  • Kommentare: 0
Disassembling Onkyo TX-800 Top case

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

Use this guide to remove the top case of the Onkyo TX800 receiver.

  1. ix6KwcUJI5MwbjfJ
    ix6KwcUJI5MwbjfJ
    xnd5otveFW1OyKKF
    YWhJEXW3qGgwkjVY

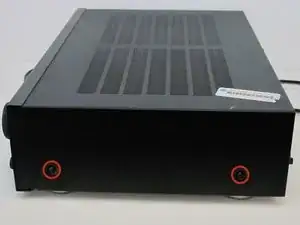

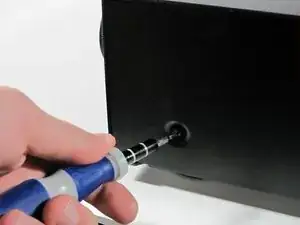

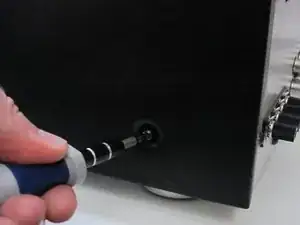

    • Remove the two screws on both sides of the receiver. Keep these and the rest of the screws in a safe place.

  2. ejY1sGgG1WIqWN2O
    ejY1sGgG1WIqWN2O
    2IGKvJuX3cEHRhe6

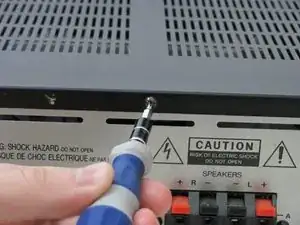

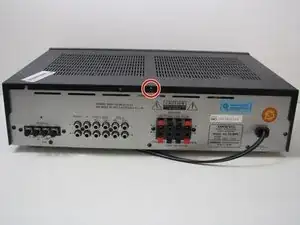

    • Remove the top screw on the back panel.

  3. QHhfuxrID3Id52LM
    QHhfuxrID3Id52LM
    oRF6swHN6NrHJnv2

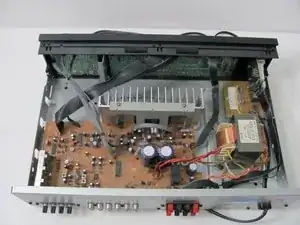

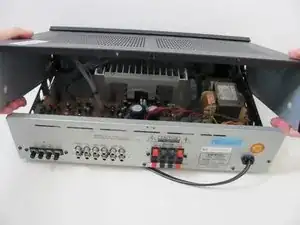

    • Slide off the case to expose the internal components of the receiver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
