Einleitung

  1. 2pOgMtrkNYCHoYBP
    • Remove the four rubber screw covers from encircled locations.

    • Using a #0 tri wing screwdriver, remove the screws previously hidden below the rubber covers.

    • If you have difficulties finding this screwdriver, it is commonly sold as a Nintendo Gameboy/Wii screwdriver.

  2. pjXt6WPEFlKnalf3
    • Pry the case open using iPhone tool (as shown), fingernails, small flathead screwdriver, etc.

    • Be mindful of location and magnitude of applied force, so as not to damage the case.

  3. DADXfqsCmkPQltPu

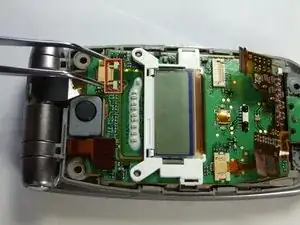

    • Unlock the minor LCD connector by applying bilateral pressure with tweezers, as shown.

  4. WuwgSyUrXc5hZFOH

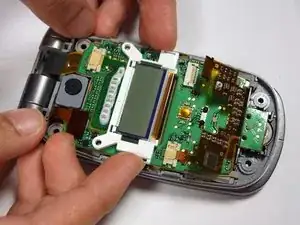

    • Use fingernails to pry off minor LCD mount, as shown.

    • Remove the minor LCD

Abschluss

To reassemble your device, follow these instructions in reverse order.
