Einleitung

This is a guide to removing the macroline that connects the POPS and the regulator. This is necessary if the macroline is leaking or to disassemble the body.

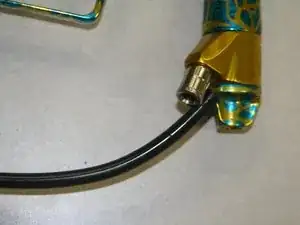

  1. wOUIYhXEXwfBMaiO
    wOUIYhXEXwfBMaiO
    ElQmEPGrMisqZmF2
    iAWoyGRGwIhHBdIg

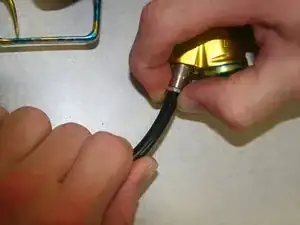

    • Remove the macroline from the fitting by pulling the metal ring around the end of the fitting away while pulling out the macroline.

    • It helps to rotate the collar to create room to pull out macroline.

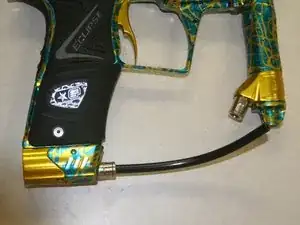

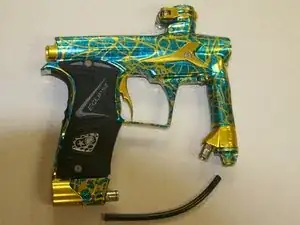

  2. XiQiAFJNSkXLfyBv
    XiQiAFJNSkXLfyBv
    xSXKp4VYJwFWOgt2
    JCHylZlgIoAijQ5M

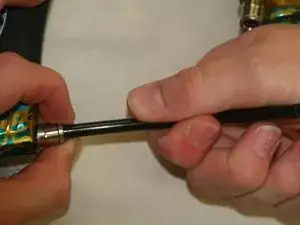

    • While pulling in the metal ring on the fitting, pull the macroline out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
