Disassembling Polaroid a520 Buttons

Geschrieben von: Dani
  • Kommentare: 0
Disassembling Polaroid a520 Buttons

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

6 Minuten

Einleitung

How to take out the buttons and replace them.

  1. WYfIkmwZig5FRnNc
    WYfIkmwZig5FRnNc
    JNeEJKUcZRYypPgh

    • Place your thumb on the battery cover and push left towards the arrow.

    • The cover will release and pop open.

  2. DTcqwMe3NS6vRyS6

    • Remove the batteries from the camera.

  3. dyooU243Ipgvg1tY

    • Remove four 3 mm screws on the right side of the camera using a Phillips #1 screwdriver.

    • This will release the front and back casings.

  4. ulLGwnwPLXLgAGLR

    • Use your nail or a flat object to pry up the edge of the front casing. Push the casing up and back.

    • Repeat this step for the back casing.

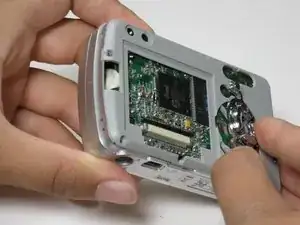

  5. IpLMhccpXLgVlpDy

    • Pop the necessary buttons out of the plastic housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
