Disassembling Qualcomm QCP-2760 Rear Backing

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

Must remove battery first. Prerequisite to removal of antenna, motherboard and screen.

  1. PTPRJGOVCt1tKyFZ

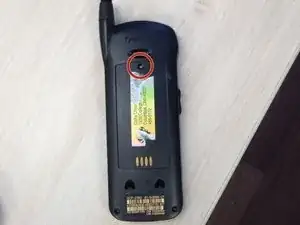

    • Unscrew the back battery plate from the phone using a T6 Torx screwdriver.

    • The screw does not need to be removed completely, the back battery plate will unhinge from the phone.

  2. yGXr3WhfPmjPpnvU
    yGXr3WhfPmjPpnvU
    BqAhSaqCqoqgCsHK

    • Using the T6 Torx screwdriver, remove the two screws located at the bottom of the back of the phone.

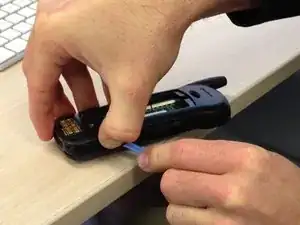

    • Find the seam between the front and back of the phone

    • Pry the seam open using a plastic opening tool, or your fingers.

    • Some force is required

Abschluss

To reassemble your device, follow these instructions in reverse order.
