This is another pre-requisite guide for repairing the SKIL 4235 jigsaw. Please also reference the first pre-req guide here before continuing.
Werkzeuge
-
-
Ensure that the Jigsaw is properly placed and that the blade is away from your body with the screws facing upward.
-

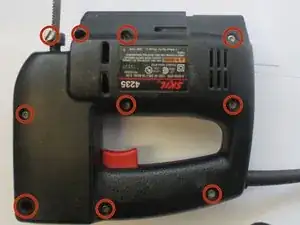

Identify the 10 screws circled for removal. Once all screws have been identified, use your Phillips screwdriver and begin removing them.
-
-
-

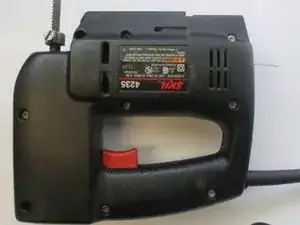

Once all screws have been removed, remove the protective frame by gripping it from both sides and lifting it skyward.
-
Be advised
-
You may need to lift with one hand and hold the rest of the saw with the other.
-
-
-
Now placing the frame off to the side you should have a clear view of all the internal working parts. Now we can begin making our repairs.
-
To reassemble your device, follow these instructions in reverse order.
