Einleitung

In order to get to internal parts of your device, you'll need to remove the backplate first. It is safest to power off your device first. Removing the backplate requires some force, so use caution.

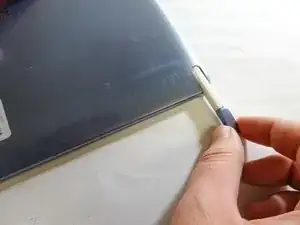

  1. YL3sNiiqvFjnPfYO
    YL3sNiiqvFjnPfYO

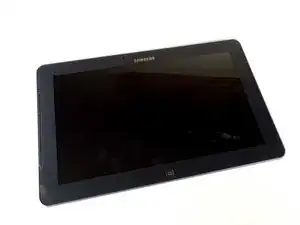

    SosOaxhu4MTekFl4
    • Remove the stylus from the device.

    • Place the device screen-up on a hard surface, like a table.

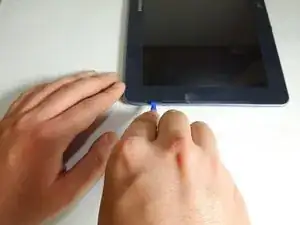

  2. b5YW6d3GFLMpkkW5
    b5YW6d3GFLMpkkW5

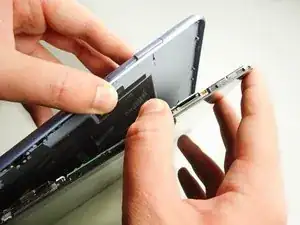

    2NckIuIlC4rRUxHf

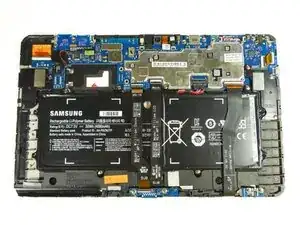

    tqiAHBBFtBPJvCDM
    • Insert a plastic pry tool or opening pick between the glass and plastic case.

    • Work your way around the plastic edge, unclipping the backplate.

    • Once the clips are loosened, remove the backplate. Some force may be necessary.

    • Though you may need to use force, be careful of the pry tool slipping and hurting you!

Abschluss

To reassemble your device, follow these instructions in reverse order.
