Disassembling Samsung DVD-P230 Outer Cover & Faceplate

Geschrieben von: Mitchell Hart
  • Kommentare: 1
Disassembling Samsung DVD-P230 Outer Cover & Faceplate

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

This is the first few steps for disassembling the DVD player.

  1. ZCIsAV4WPXmgmktY

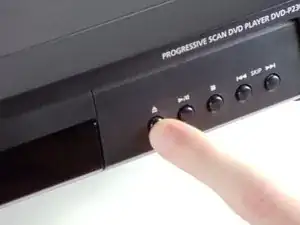

    ZCIsAV4WPXmgmktY
    HPbJZF5mxyn2TeBA
    ZsNRHDqcJkCs4YDX

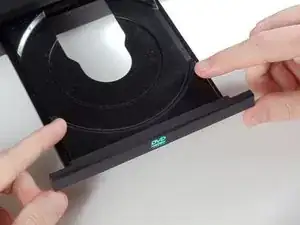

    • Open the tray by pressing the eject button

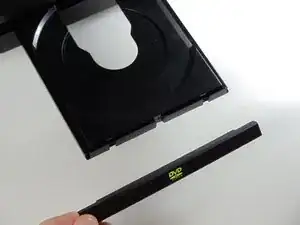

    • Remove the DVD tray faceplate by pushing the faceplate up off of the tray.

    Very Super service!

    SzibeL -

  2. OhLfcEahRNRIDn51

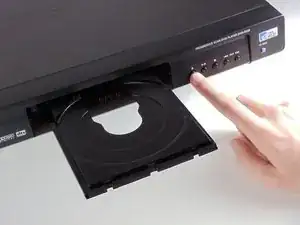

    • Press the eject button to insert the tray

    • After the tray is closed unplug DVD player

  3. 3Gm6fLxyZlhTGRNP

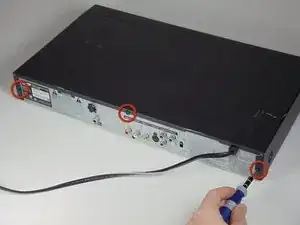

    • Unscrew the 3 screws in the back.

  4. SW5ITatQiYCsgODf
    SW5ITatQiYCsgODf
    KRBJbDRAqwIeyLvJ

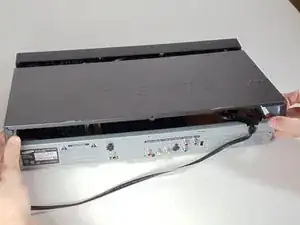

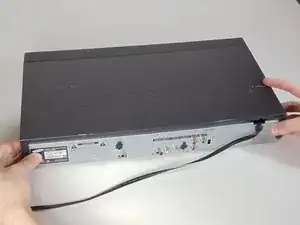

    • Pull the outer case upward and then towards you.

  5. yhImEwi64cWAvTcX
    yhImEwi64cWAvTcX

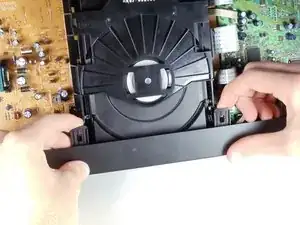

    XmffFGKMgNpWmmsD
    uRVEc6MxPyseBgMR

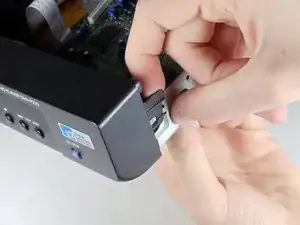

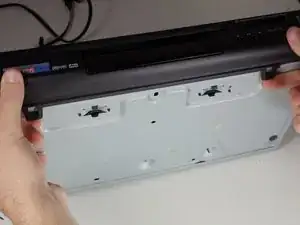

    • There are six symmetrically placed tabs holding in the front faceplate. Unhook these six tabs to loosen the faceplate.

  6. idZPysyJia43cHCw

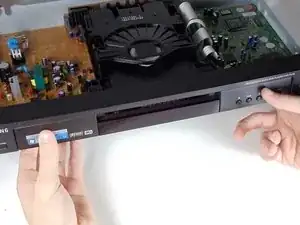

    idZPysyJia43cHCw

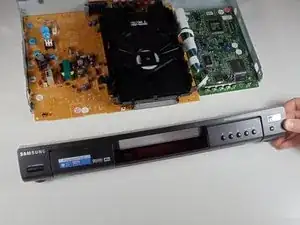

    DYEE4F5JDaMnHKZu

    • Pull off front faceplate. This may take a couple of tries to get all six tabs unhooked simultaneously.

Abschluss

To reassemble your device, follow these instructions in reverse order.
