Disassembling Samsung Galaxy Ace Logic Board

Geschrieben von: finster
  • Kommentare: 3
Disassembling Samsung Galaxy Ace Logic Board

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

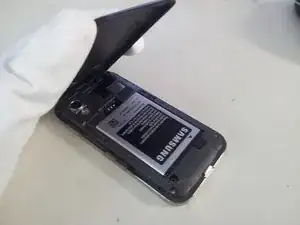

  1. 1AlGpEWVREBiY1mn
    1AlGpEWVREBiY1mn
    HCDCRcaZPFJoRmV2

    • Remove the battery cover and the battery

  2. YWWQDJKbTY4OQNeU
    YWWQDJKbTY4OQNeU
    tvOG4xfXVCQFK1s2

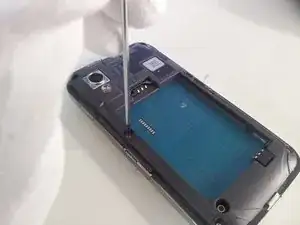

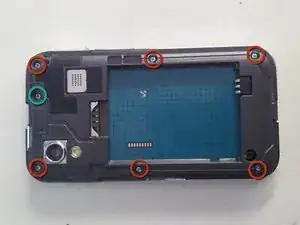

    • Remove the 7 silver screws with a Phillips #000 screw driver.

    • Sometimes the green one could be a little difficult. Use a tweezer for get it out.

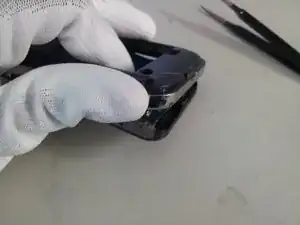

  3. hwrgNqxTEq4VHWAQ
    hwrgNqxTEq4VHWAQ
    HRDQLXFeTVZKmH2g
    vOFXRhLRO3KfaohJ

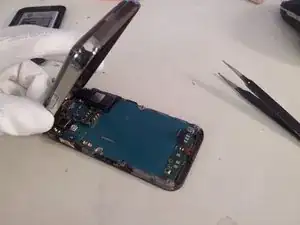

    • Lift gently the back cover from the screen assembly from the bottom.

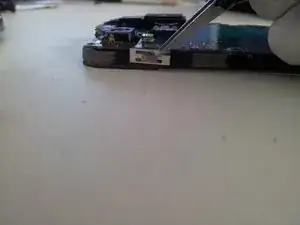

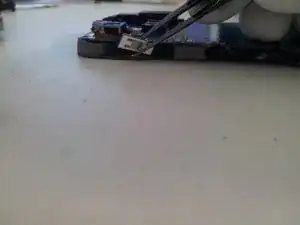

  4. Y45lBBiEC4vBRWQL
    Y45lBBiEC4vBRWQL
    frnHAbSaCQSfpwre

    • Use a flat tweezer for take off the flexible on/off button from the frame.

    • Be careful, the flexible is very delicate; it could be cut if you go too fast.

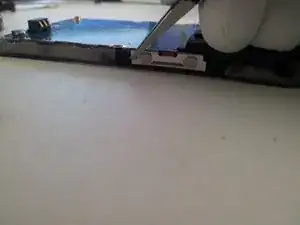

  5. FgBTNX53XE633aCl
    FgBTNX53XE633aCl
    hbNyiaDDAPkkFDt6
    ekZZcX3H3inp2VIF

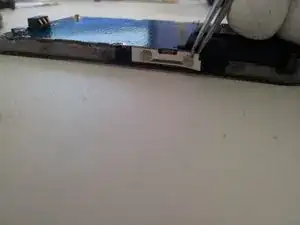

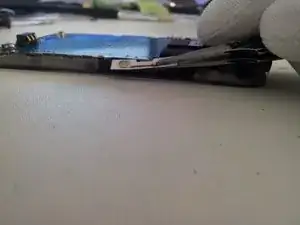

    • Use a flat tweezer and take off gently Flexible volume button from the left side.

    • Do the same for the right side.

    • Then lift the flex slowly, if you go fast you may cut the cable.

  6. IETvUdKvtTVqMwjZ

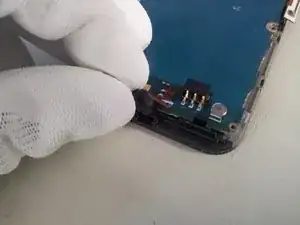

    • Lift the microphone from the logic board.

    How can you replace the microphone?

    Henna -

  7. 5MIxMIYHPZ4MABeu
    5MIxMIYHPZ4MABeu
    BMmRmgMOpa1EH42K
    Iy1jQ1NcxTHryZJU

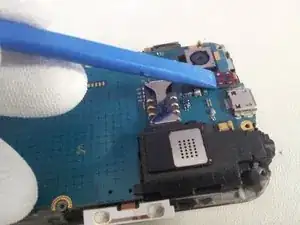

    • Lift the sensor/earpiece cable with the opening tool.

    • Don't force, you may damage the soldering.

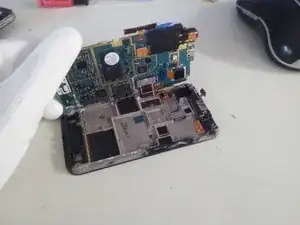

  8. ufRHPHVJOMwTbDrY
    ufRHPHVJOMwTbDrY
    xE6uFHtGHOjTOuqf
    1QraJuAwfVYrNZkJ

    • Lift the logic board from the right side.

    • Use the removal tool to unplug the display cable from the logic board.

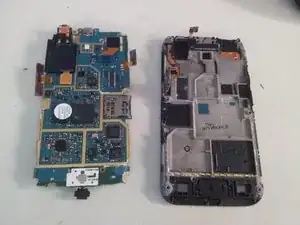

    • You can now separate the Logic board from the display assembly.

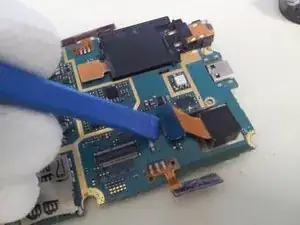

  9. DwM3Jhh63t6Xav4X
    DwM3Jhh63t6Xav4X
    6h5qF6pBTRcWrXDU

    • Use the removal tool to unclip the camera module from the Logic board.

  10. CYug23iQKSnKU5EY
    CYug23iQKSnKU5EY
    X3OCyXtF2JRJCH6Q
    PEFnqvVjJclmkcTa

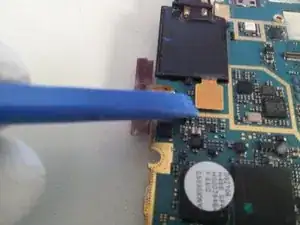

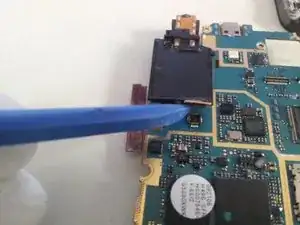

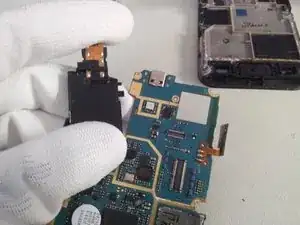

    • Use the removal tool or a spudger to unplug speaker module cable

    • And separate the speaker module from Logic board.

    • Be caution, the module is fixed by plastic teeth to the Logic board. Don't force, just make little wave-movements and the speaker comes on his own.

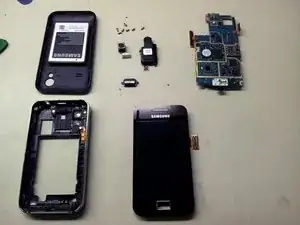

  11. HGIiLBIBGAFmuBFa

    • Now you can work with the Logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
