Einleitung

This guide will teach you how disassemble and reassemble the rear case to your Samsung Gravity SGH-T459.

  1. L2vOIhhAlTwLNdGW
    • Press and hold the End key to power down the cell phone.

    • Gently remove the back cover with your fingers by sliding it in the direction of the arrows.

  2. UNaKChTvUGWt1xvv
    • Gently lift up and remove battery with your fingers in the direction of the arrows.

  3. TNhK5lfRhX61yV5d
    TNhK5lfRhX61yV5d
    ZRtduFkhCDBrK1jR
    hVkAKRiX3weSGYU5
    • Hold the cell phone steady with one hand. With the other hand, use a Phillips screwdriver to remove all 6 screws around the edges of the rear case.

    • Slide the phone open.

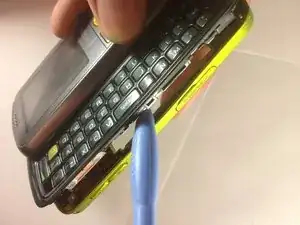

    • Use a plastic prying tool to pry open the edge of the green trim near the space bar of the keypad. You should hear the rear case unsnap.

    • Gently lift and remove the rear case from the cell phone.

    Needs to note the placement of the volume keys & camera key. These tend to come out of their placement after removing the rear case.

    dgalbrec -

Abschluss

To reassemble your device, follow these instructions in reverse order.
