Einleitung

  1. bRKcLebJkX1xTnNg
    bRKcLebJkX1xTnNg
    rXMGRosGSaruBEUw
    • Remove the battery (which also functions as the back cover) from the device. This step is not explicitly shown, but a picture without the battery cover shows the device post-battery removal.

  2. fyDDGJFVCQYriTCb
    fyDDGJFVCQYriTCb
    ToWtWPVR5RQB5AUX
    • Use a Philip's head screw driver to remove the screws from the case.

    • Place the screws in a small container to avoid losing them.

  3. R1ywFJVy1lCnMQNi
    R1ywFJVy1lCnMQNi
    qTfYPlMOou2CTrK4
    ErfYgrqTSpJytJtI
    • Remove the front cover.

    • First, insert a small pry bar where the black front cover and white back cover meet.

    • Begin prying the black plastic up, slowing moving around to the bottom and other side.

    • At an angle, carefully pull up on the front cover separate the two pieces.

    • Excellent! Now you have removed the front cover!

  4. MRuZ5YpuIMcdrorg
    • While looking down at the device, place your index finger at the top of the circuit board and your thumb on the device screen.

  5. K2FEYsCu4Ikwws1Q
    K2FEYsCu4Ikwws1Q
    dWsvKp6TNOuTMeo4
    • Using your fingers, gently pull the top of the circuit board up toward you while also sliding the bottom of the circuit board away from the bottom of the Sirius Stiletto 100 back cover.

  6. GPXC1IrZCw6vW6DG
    • Congratulations! You have successfully removed the internal circuit board from the Sirius Stiletto 100 back cover.

  7. ZlUZpYSDGdLF1c3R
    ZlUZpYSDGdLF1c3R
    h2L3do1U3ZAMoe1B
    oDeYBRtdAIvBR1yW

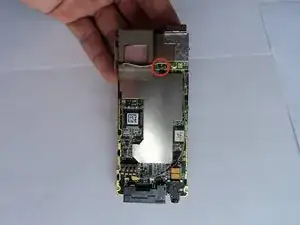

    • Flip the circuit board over to look at the back side, so that LCD screen is facing away from you.

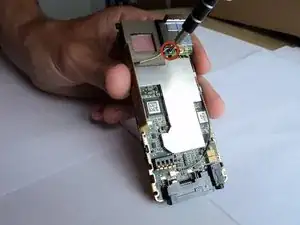

    • Use a Phillip's head screwdriver to remove the screw from the back of the internal antenna.

  8. gLsSNJaJaYq3ftj6
    gLsSNJaJaYq3ftj6
    poauMBdBVnXeBRhV

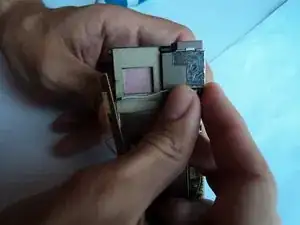

    • Use your fingers to pry the internal antenna off of the circuit board. You may need to wiggle it back and forth to successfully remove it.

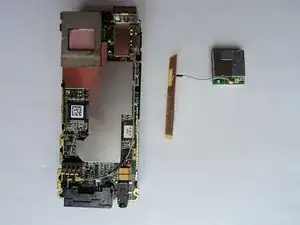

    • Woohoo! You have removed the internal antenna!

Abschluss

To reassemble your device, follow these instructions in reverse order.
