Disassembling Sony Clie PEG-SJ22 Outer Case

Geschrieben von: Samantha Taylor
  • Kommentare: 1
Disassembling Sony Clie PEG-SJ22 Outer Case

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

  1. 5HTglt3A2C2rSw4n
    5HTglt3A2C2rSw4n
    EIHe13Owb1UISY1O

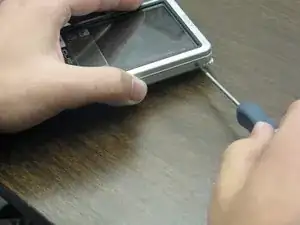

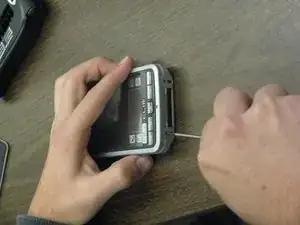

    • 1. Unscrew the six screws on device. (2 screws on left side, 2 on right side, 2 on bottom)

  2. AQYHZF2V2RdLVBSu
    AQYHZF2V2RdLVBSu
    loIpGhFPdZiH1TSo

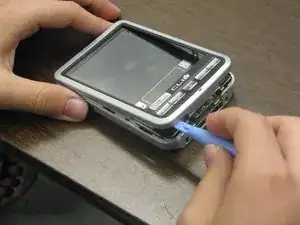

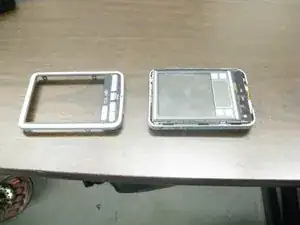

    • 2. With an iPod opening tool, lift the front cover (face plate) from the device.

  3. uOkkaoiFy1xtnkxl

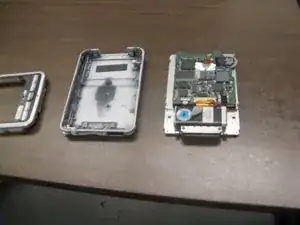

    • 3. Pull the screen out of the back case with iPod opening tool. The device should now be in three different parts.

Abschluss

To reassemble your device, follow these instructions in reverse order.
