Disassembling Sony Cyber-shot DSC-T1 Removing Front Cover

Geschrieben von: iDeleted
  • Kommentare: 0
Disassembling Sony Cyber-shot DSC-T1 Removing Front Cover

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Removing the front cover is a necessary first step in disassembling the camera in order to repair or replace any internal parts.

  1. LIqAO2axT5tQyEZk
    LIqAO2axT5tQyEZk
    wv5tqGMYrQIr3KSd

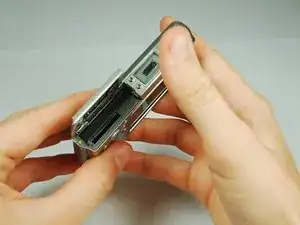

    • Locate the battery door at the bottom of the camera.

    • Press down on the door and slide it back. The door will pop open.

  2. 6FYuZBMbTJ2YZPWl

    • Remove the battery from the door that you opened in the previous step.

  3. lVLDWTNZSPK3otA6
    lVLDWTNZSPK3otA6
    gfCyPgT2woJ3yyHj
    NVu4BYsuyORP2jPH

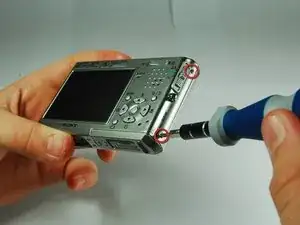

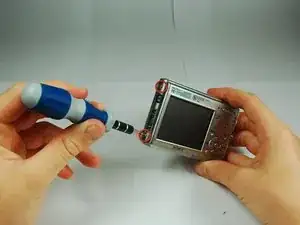

    • There are two screws on the left and right sides of the camera, and two screws on the bottom.

    • Use a PH00 screwdriver and remove the six 2.9mm screws.

  4. SaZIDW2GWVxApNkf
    SaZIDW2GWVxApNkf
    f2NIGkQgvhoSkBAD

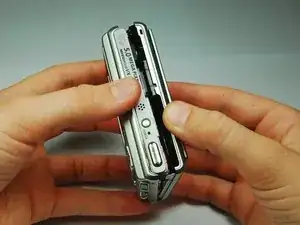

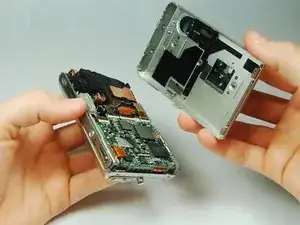

    • Use hands to gently pry the front casing away from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
