Disassembling Sony Ericsson W200i Core

Geschrieben von: Emily Prescott
  • Kommentare: 1
Disassembling Sony Ericsson W200i Core

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Removing the core is easy, but you will be removing 4 screws, so make sure you have a place to put them for safe-keeping.

  1. 4UNpSYDN3yGkgh1b
    4UNpSYDN3yGkgh1b
    V2n1rTl1m4alJNfE

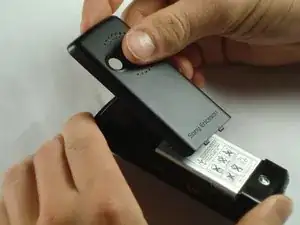

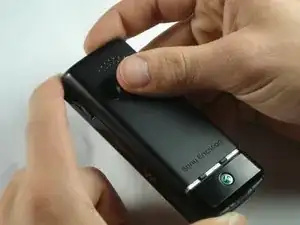

    • Slide the battery cover up and off the phone.

  2. PrsSQPDXQZQpCTuU
    PrsSQPDXQZQpCTuU
    qKgTDZS5kAPX1MVN

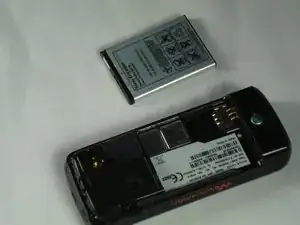

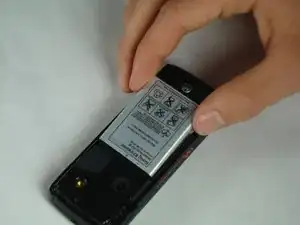

    • Pop the battery out of its slot by lifting it up.

    Battery price

    lalarajasrivastava -

  3. 2UVQHcsfHcw33LAe
    2UVQHcsfHcw33LAe
    ayPBhXOXvBREXQQo
    ZqU34iiXoyi5vZRV

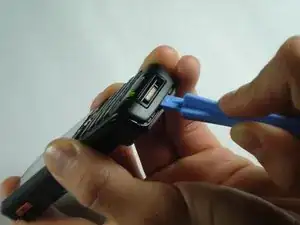

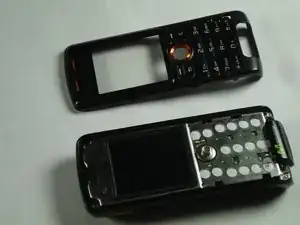

    • Insert the plastic opening tool in between the front case and the back case.

    • Apply downward pressure to make the case lift upwards, thus popping the front case off.

    • Use caution when removing the front case. It may seem stuck but just ease it out.

  4. Av5M2DnIeCehNiLN
    Av5M2DnIeCehNiLN
    64WqsWIeFixhAxXA

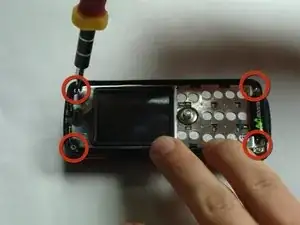

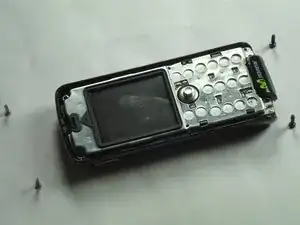

    • Remove the 4 screws in the corners of the front of the phone using a T6 screwdriver.

    • Note that the top 2 screws are silver and the bottom 2 screws are black.

  5. cgohitxJcxI2f1CH
    cgohitxJcxI2f1CH
    S6RvDIQcEtxD2FNa
    2mgDlPX6cVBYAG1P

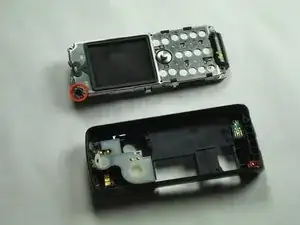

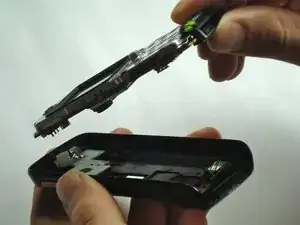

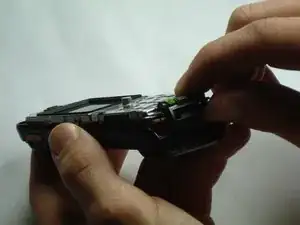

    • There is a black tab in the top left corner holding the core in place.

    • Remove the core by pulling straight up to prevent breaking the tab.

Abschluss

To reassemble your device, follow these instructions in reverse order.
