Einleitung
Use this guide to remove the back cover and access the motherboard.
Werkzeuge
Ersatzteile
-
-

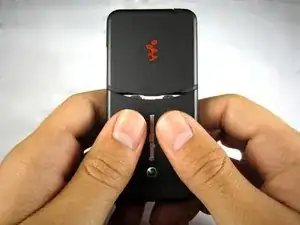

Hold the phone with the screen facing down. Push the back cover firmly down and slide it towards you.
-

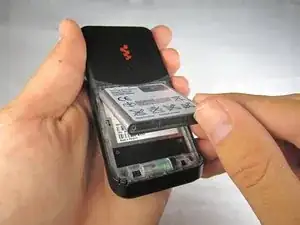

The panel will slide down about 2mm.
-

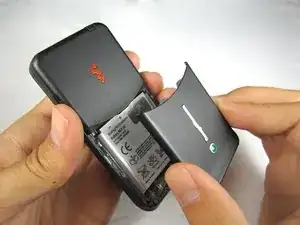

Lift the panel away from the phone.
-
-
-

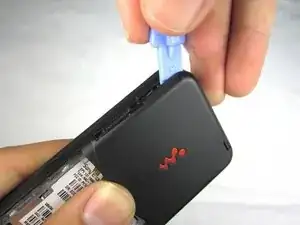

Insert the edge of an opening tool between the back cover and the phone body on the top edge (not to be confused with the edge where the phone slides).
-
Pry the back case off of the phone working your way around the edges until the panel is freed from the phone.
-
-
-

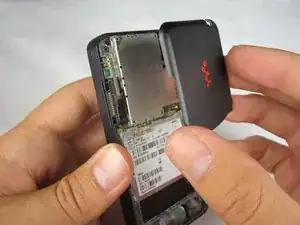

Pull the back cover away from the phone.
-

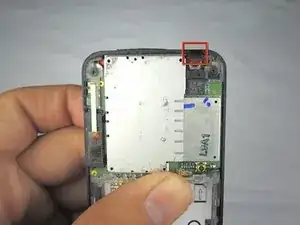

Remove the power button if it has not already come off.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
