Disassembling Sony Ericsson w600i LCD Section

Geschrieben von: Beau Blanchard
  • Kommentare: 3
Disassembling Sony Ericsson w600i LCD Section

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. 1vUGMCC4VeKXHtsa

    • Grip the lower portion of the back of the phone and slide downwards.

    I really needed Sony Ericsson battery w600i Walkman phone orange color and u s b cable charger for Sony Ericsson Walkman phone I really needed them

    Bertram Richardson -

    So bad in need of

    Bertram Richardson -

    Everything just like that phone I have in need of battery and u s b cable charger for it sony Ericsson battery w600i Walkman phone orange color

    Bertram Richardson -

  2. tPq3pkNKPHE61g2C

    • Lift battery at the rounded notch near the bottom of the phone.

  3. SHQwRcexabCQUZDk

    • Unscrew the four Torx screws from the backplate.

    • The backplate may begin to separate from the keypad face. Do not try to remove it yet.

    • The screws are T5 Torx screws, 5.6mm.

  4. IthVYNjUICEL6oSR

    • Swivel the phone open.

  5. 1KSmkU3PMtoDHVSJ

    • Using the Spudger, gently pry up the U-shaped grey cover below the keypad.

    • The cover is secured with adhesive tape. The gentler this is removed, the easier it will be to reassemble.

  6. EqRFEbjwQGBvagbS

    • Remove the two Torx screws from below the cover.

    • These are T5 Torx screws, 8.6mm.

  7. dsoySuimtKmVJIIv

    • Gently work a spudger or a fingernail between the keypad face and the backplate.

    • The pieces are clipped together most tightly at the bottom loop section.

  8. eIy2H2HxdqHgnICN
    eIy2H2HxdqHgnICN
    ZsVZcWOpjSdeOEcN

    • Separate the keypad face from the backplate.

    • The keypad keys and the button component are both loose inside the phone, so take note of their orientation in case they become dislodged.

    • Take note of the braided cord's state. Upon reassembly it should be returned to the same orientation.

  9. MOPoqOnVuvP6R24D
    MOPoqOnVuvP6R24D
    ODN5iHFnWnGFWctk
    ZSpwdTWJ3SQIOp63

    • Holding the backplate away from the swivel, remove the 4 small Phillips screws and both stamped struts from the swivel assembly.

    • Note that only the bottom strut has a tab.

    • The screws are Phillips, 2.9mm

  10. gUwbLVAfeXIylXSf

    • The back housing is now disassembled, and the swivel assembly is revealed.

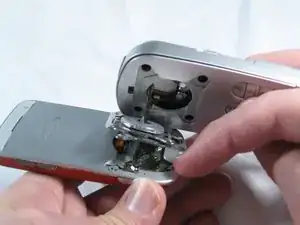

  11. qXXmUh2QSJYG3duV
    qXXmUh2QSJYG3duV
    TB4m2bSZa4jJyb6W

    • Remove the four black Phillips screws holding the swivel assembly to the LCD section of the phone.

    • Be mindful of the screws, as they are very small.

    • The screws are Phillips, 2.4mm

  12. QSoA52N14dNSZEse

    • Gently remove the grey plastic cover at the top-rear of the LCD section with a spudger.

    • It is secured with adhesive tape, the more gently you remove this piece, the easier reassembly will be later.

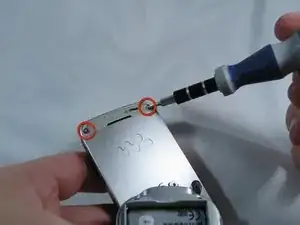

  13. t2cIjSW5KtCklOFW

    • Remove the two Torx screws revealed under the grey cover.

    • The screws are Torx T5, 5.6mm

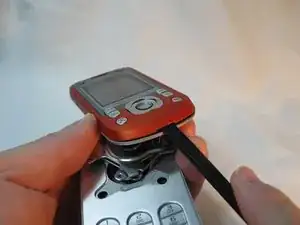

  14. hjdigXwSdNpK1UF2

    • Gently pry off the front face, starting at the bottom slot.

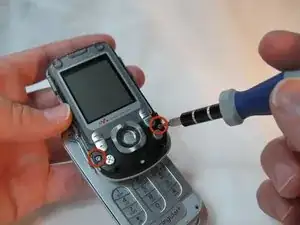

  15. CE5CtDJpMkwHCUqQ

    • Remove the Torx screws near the buttons.

    • The screws are Torx T5, 5.6mm

  16. P3vRbsuuwIQi5cGO
    P3vRbsuuwIQi5cGO
    gmbuQgbReyopVkmq

    • Remove the black front plate.

    • Remove the button overlay, taking note of its position for reassembly. There are small grey nubs that correspond to holes in the overlay.

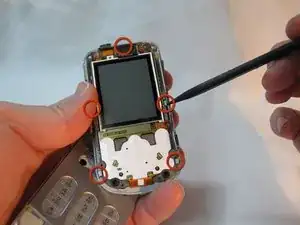

  17. oQ1D1RQH1crKOvTq

    • Gently release the small grey retaining clips around the outside of the display assembly.

    • Separate the display assembly from its backplate.

    • Take care; some of the side buttons may dislodge as the backplate is separated.

    • The LCD section is now disassembled.

Abschluss

To reassemble your device, follow these instructions in reverse order.
