Disassembling Speak And Spell Case

Geschrieben von: bushing
  • Kommentare: 1
Disassembling Speak And Spell Case

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

15 Minuten

Einleitung

  1. ednUExDxqE3QUtHI
    ednUExDxqE3QUtHI
    N3c2JWbUWhQWtbJQ

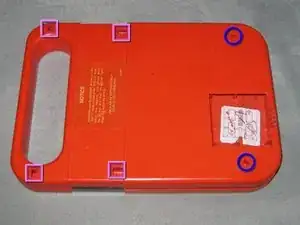

    • Flip the toy over, so that the keypad is facing away from you.

    • Remove two Phillips-head screws.

    • Insert a plastic spudger (or 4!) into the marked holes, and push down and towards the edge to release each catch.

    • It's possible to release each catch one-at-a-time, but easier if you have 4 tools and do them simultaneously.

    • This requires quite a bit of force; be careful.

  2. N2HBpQkLGYRxUIXp

    • Separate the two halves of the case to expose the inner PCB, speaker and battery holder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
