Disassembling VTech MobiGo Touch Learning System Keyboard

Geschrieben von: RBansil
  • Kommentare: 2
Disassembling VTech MobiGo Touch Learning System Keyboard

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 Minuten

Einleitung

This is a step by step guide to show how to replace the keyboard. Prior to this guide, you will need to refer to the Disassembling guide for the case.

  1. P4tgNGNP5KAfotOW

    • Remove the battery covers and the four batteries.

  2. ENhAVcTxAv2CpMSJ
    ENhAVcTxAv2CpMSJ
    POiVIGRsECMtGcLg

    • Remove the four plastic caps with a metal spudger to expose the 6.0 mm Philips JIS #0 case screws.

    • Remove the eight 6.0 mm JIS #0 case screws.

  3. RNsQPuKGIAPYJmVo
    RNsQPuKGIAPYJmVo
    mSPdBwJUoIkeHpHB

    • Using a plastic opening tool, separate the two pieces of the case carefully.

  4. DfeMehBGj6JOUODJ
    DfeMehBGj6JOUODJ
    vxOdJDw5dgg5FIuU

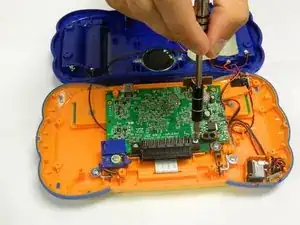

    • Remove the six 6.5 mm Philips J0 screws that are connected to the circuit board.

    • Use light pressure to prevent damage to the circuit board.

  5. cVTvNoL2VylpXTOC

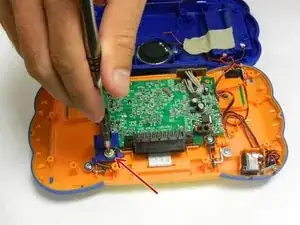

    • Remove the 9.0 mm Philips J0 screw from the blue plastic cover.

    • Once the screw is removed, remove the blue plastic cover.

  6. VN6EcE1OpjmqDSHC
    VN6EcE1OpjmqDSHC
    RSKkVforj4AOOAPY

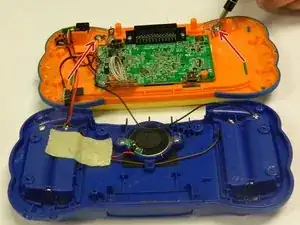

    • Remove the two 4.0 mm Philips J0 screws located on the orange case.

    • Use gentle force to prevent stripping of screws.

  7. fuwVgBwCBv4FxJXS
    fuwVgBwCBv4FxJXS
    gJDfGQcvOku4lZgZ
    GyEbpSKMFqYts6RC

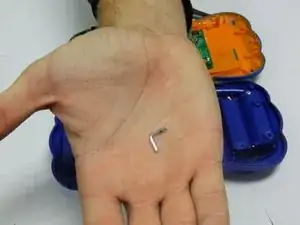

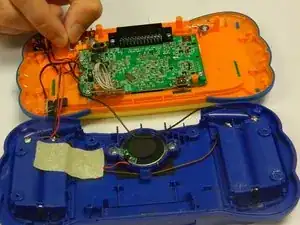

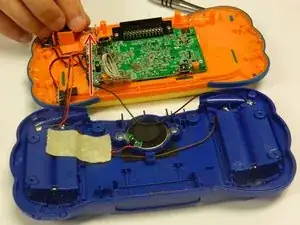

    • Remove the two "L" shaped brackets located on both sides of the device.

    • Use the magnetic mat to store these brackets.

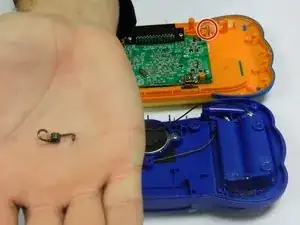

  8. KQLs3ydos2l22Jqw

    • Locate the spring that was connected to the "L" shaped bracket and slowly remove it.

  9. PRW5U5wWwsNkIoUm
    PRW5U5wWwsNkIoUm
    o1IqecsdLNRkqVeL

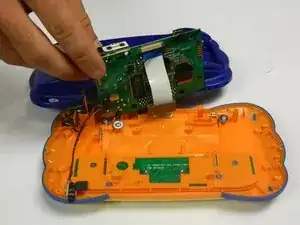

    • Gently lift the circuit board from the case using a plastic opening tool.

    • Make sure to use a plastic opening tool for this step.

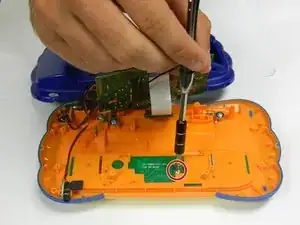

  10. eXLHlHbNTExiZlvQ

    • Remove the 3.5 mm Philips J0 screw located underneath the circuit board.

    • Keep the circuit board out of the way to avoid damaging it.

  11. JBqMYBCe1CsKrjYg

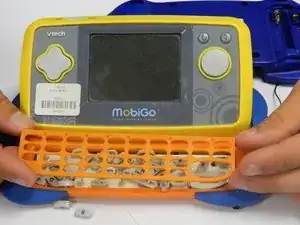

    • Slowly remove the keyboard panel.

    • Use a spudger if necessary.

    • The keys will fall out once the keyboard panel is removed.

    • Remove all of the keys and set them aside with the keyboard panel.

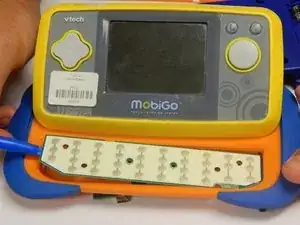

  12. RaVOrYcHtJefWB5I

    • Gently remove the keyboard circuit board with a plastic opening tool.

    Where do you get a replacement circuit board?

    Kara -

Abschluss

To reassemble your device, follow these instructions in reverse order.
