Einleitung

  1. Hqv2QqOvHDudXMI6
    • Carefully prise the back cover off the phone.

  2. QGKZVlSUqqpeYpLm
    • Remove Battery, SIM Card, and MicroSD

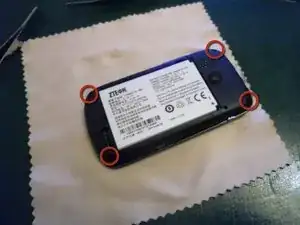

    • Remove the four screws located around the edge of the case. They should be very small phillips heads.

  3. oedRlKWCaYgrwyrR

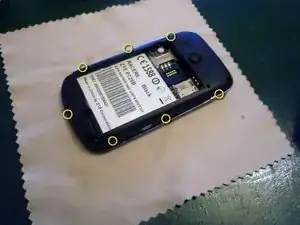

    • Using a flathead screwdriver, carefully prise the black plastic away. It's held in with a series of clips, and should come away easily.

  4. fPrHMbVZOGrVKDv1

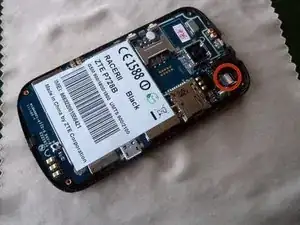

    • Carefully remove the ribbon cable that connects the capacitive screen to the main board. You need to carefully lift the small tab, then pull the cable out.

  5. uWvHZQBZiVoIYveV
    uWvHZQBZiVoIYveV
    UUc1SZWFCcBwJNpl

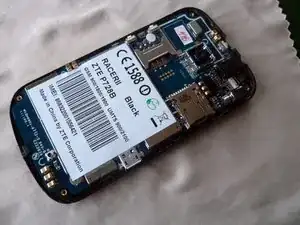

    • Now using the flathead screwdriver, prise the plastic that makes up the front, away from the circuit board. Like the back piece, it has a series of clips around the edge, and should lift free without much effort.

  6. CvdjVdQFLkQNlelW
    CvdjVdQFLkQNlelW
    cj2mopur2XO14jGq

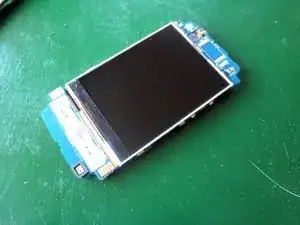

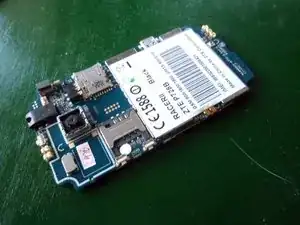

    • There you have it. Amazingly simple to take apart this phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
