Disassembling the Board, Power Button, and Battery Compartment of an Apple Wireless Keyboard

Geschrieben von: Janne Jakob Fleischer
  • Kommentare: 11
Disassembling the Board, Power Button, and Battery Compartment of an Apple Wireless Keyboard

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

2 Minuten

Einleitung

If you are experiencing issues with your wireless keyboard, this guide will show you how to disassemble the keyboard and find the issue.

  1. R4bntvKfnQJyJCSl
    R4bntvKfnQJyJCSl
    bSjhR2fHFZX4owO5

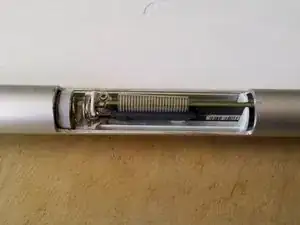

    • Pinch the plastic cover while applying force equally. The cover plate should come off pretty easily.

    • Note the set of clips on the long side of the cover. Pinching in at those points will allow the cover to come right off.

    A Dremel is not required. I was able to push firmly on both sides of the plastic cover and it flexed enough for me to get a small flat blade screwdriver in to open it the rest of the way.

    Colin Ayer -

    Use caution. I had to apply a lot of squeezing pressure to get the cover to come loose and when it did it flipped in my fingers and those pointy little clips stabbed into my thumb. Not pleasant. I suggest using just enough pressure to allow you to use a tool to pry the cover loose.

    slwatts2 -

  2. DpZFi4QPHB2RjY41
    DpZFi4QPHB2RjY41
    OEXiZlMb2auV2NIM
    21ruFywhXXvHQYsM

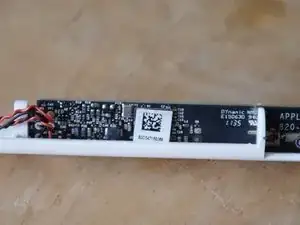

    • After removing the plastic cap, remove the screw. With the keyboard lying on its face, unlock the cable connector by pulling its black plastic locking strip upwards. Then, ease out the connection cable to the keyboard foil (this can be done by inserting a strong pin under the cable and wedging it upwards).

    • After that, you can push the whole inside in the direction of the power button and out of the keyboard frame.

    • Reassamble the other way around: When pushing the inlay back into the frame, make sure the plastic cable to the foils is on the correct side.

    The flexible circuit connector stumped me for a bit. Put a bit of pressure at the edges towards the top of the board. It then pops up 1 mm or so. The flex/foil circuit might slide out at this point, but mine seemed a bit sticky.

    Colin Ayer -

    Be careful with the connection cable while pushing the assembly out of the keyboard!

    Marcelo de Souza Silva -

    I have a frozen battery cap that actually broke one of my Kershaw tools (a flat edge extension tool on one of their knives), snapped the %#*@ thing off. Now that's tight. I have used WD-40, Ronsonol fuel, and sheer twisting my best screw drivers but all I've done is tear apart the screw nick on the battery cap. I've used this tutorial to take it apart (carefully!) and been able to pull out the second battery which had white corrosion on the positive end.

    But I can't reach the number one battery which is frozen in there. I've sprayed WD-40 in and am patiently waiting for it to work its way down to the connection. But I have no idea how to get that battery out. I can't get a screw in there to drill it in to the battery. I have no idea what the next step is. Anybody have an idea?

    Ira

    airira@mac.com

    airira -

Abschluss

To reassemble your device, follow these instructions in reverse order.
