Disassembling the Nokia 6300

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Disassembling the Nokia 6300 is not very hard and if you know how to disassemble other Nokia phones this will be very easy. You need a Torx T6 screwdriver.

  1. vmRmoPkJXMfXIlAk

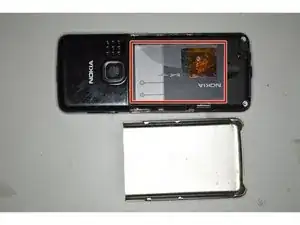

    • Take off the back cover by pushing it down and sliding it backwards.

  2. 2CmokMlJC6JHP5Nh
    2CmokMlJC6JHP5Nh
    DG3VrAXP3cnrJ2Mm

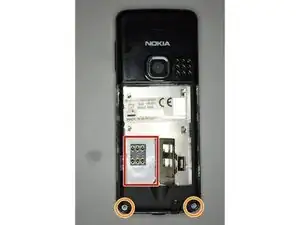

    • Take out the battery, SIM card, and MicroSD card.

    • Unscrew the two T6 Torx screws.

  3. qBpGyO55iyTNDRh2

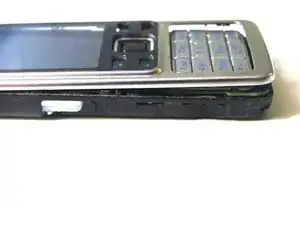

    • Try to seperate the front cover from the rest of the phone. The front cover is held by four plastic clips.

    • The first time you do this you may have to use some force but do it in a controlled way. If you break the plastic clips you'll need a new front cover.

  4. RNG3PIKe2XJWelaR

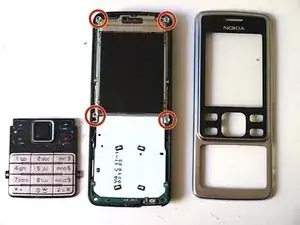

    • You can take off the keypad now, this is sitting loose on top of the sensors.

    • Unscrew the four remaining T6 Torx screws.

    • The screws holding the motherboard in place are different from the two previous screws which held the rear cover in place.

  5. htnrfACiZScpFcvB

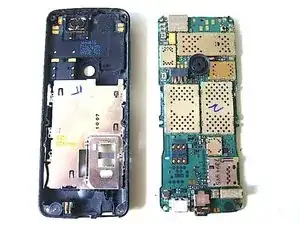

    • The motherboard with it's screen are now loose, you can pop it right out.

    • If you've been using this phone for a while, there's probably some dust inside the back shell.

    • There's a lot of contacts exposed, so make sure not to damage those.

  6. Q6rbWmuLEhgpRRco
    Q6rbWmuLEhgpRRco
    lhfuabWWJU1QvJjN
    36CQn1TKadGZCTxq

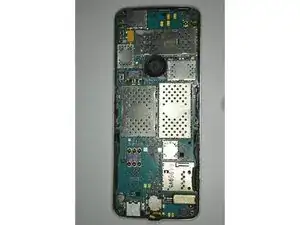

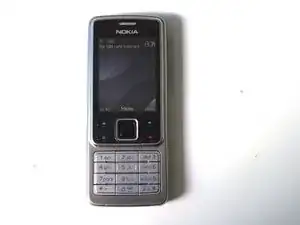

    • There's your phone!

Abschluss

To reassemble your device, follow these instructions in reverse order.
