Disassembly Guide for Frame

Geschrieben von: James Lipsett
  • Kommentare: 0
Disassembly Guide for Frame

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This is only a prerequisite guide.

  1. rT1QeLQjV1tJV5kZ

    • Disconnect any power source and/or turn off device.

  2. MyF5D5ZsmO4YC6o2

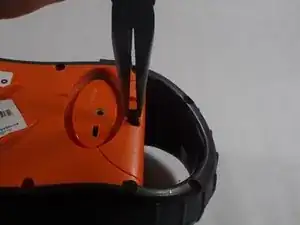

    • Remove the 15 rubber plugs from the cavities using needle nose pliers.

  3. MFJihdcbkWrBRThH

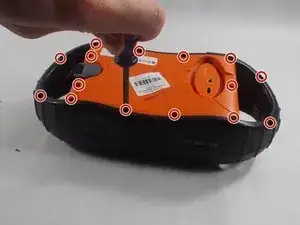

    • Use a phillips head screwdriver to remove the fifteen 6.4mm screws.

  4. IwpPuAOGbvngpOAb

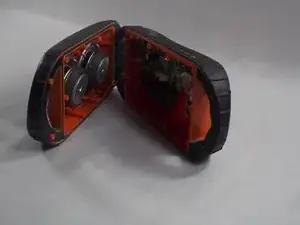

    • Carefully separate the two sections of the frame.

    • Wires still connect the two sections. Be cautious to avoid damaging the wires, terminals, and electronics.

Abschluss

To reassemble your device, follow these instructions in reverse order.
