Display Assembly

Geschrieben von: Terrence15
  • Kommentare: 0
Display Assembly

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

3 - 9 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

    • Pull straight up on the pull-tab that is attached to the display-feed flex cable to disconnect the cable from the system board.

    • Disconnect the antenna cable.

    • Close the display.

    • Turn the computer upside down with the back of the computer facing you.

  2. QhdxyMR65LUMcffG

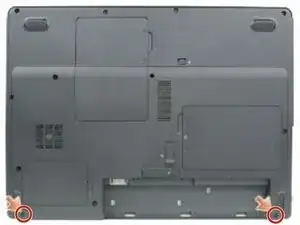

    • From the bottom of the computer, remove the two M2.5 x 8-mm screws labeled "D."

  3. J4TMcUhAhOTWCnSd
    J4TMcUhAhOTWCnSd
    QrujDQ3v6KWtFgWh

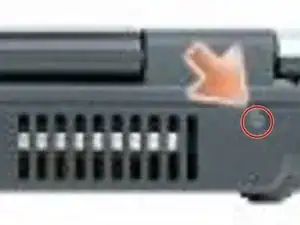

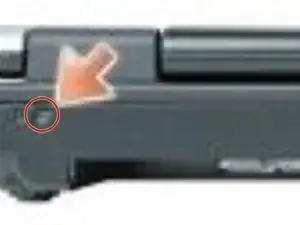

    • From the back of the computer, remove the two M2.5 x 8-mm screws labeled "D."

  4. OFivQDR3GWvSirpC

    • Turn the computer right-side up and open the display.

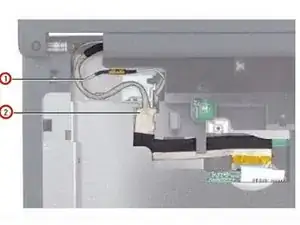

    • Carefully remove the antenna cable and the display cables from their routing guides.

  5. kMf5ObcUAmZaiJP2

    • NOTICE: Be careful not to damage the display switch when removing the display.

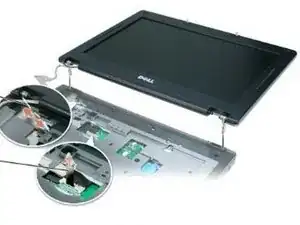

    • Lift the display assembly out of the computer base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
