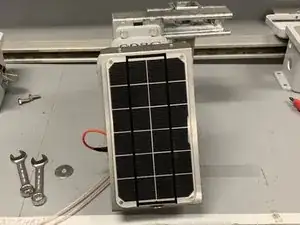

    • Refer to steps 2-5, 6-7, and 20-21 in the Depth Sensor Node Enclosure Assembly to attach the solar panel to the node enclosure.

    • Use the same enclosure provided in the node enclosure assembly guide with the same cut out holes.

  2. vTcJy2auvJpZDUZw
    vTcJy2auvJpZDUZw
    AYryDHRTt1NmrCNe
    AUAnBgi12B3LsvGc

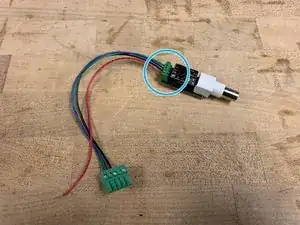

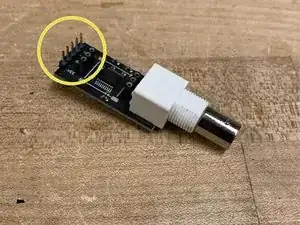

    • Locate the old style electrically isolated carrier board. If pins are soldered on, remove and solder on a 2 and 3 plug header or one 5-plug header.

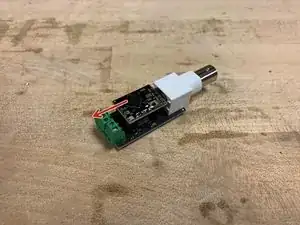

    • Once the new attachments are soldered on, proceed to put the temperature circuit board into the connection holes. The black square of the circuit board should face towards the soldered attachments.

    • Cut wires to approximately 6 1/2 inches to allow enough length to secure the wires into the 5-plug header.

    • Refer to the temperature section of the wiring diagram when wiring the adapter.

  3. OiTKMv2ZdMkUuvXA
    OiTKMv2ZdMkUuvXA
    a2sYDp46YE6oedsI
    6WoAreJDGCaKMWme

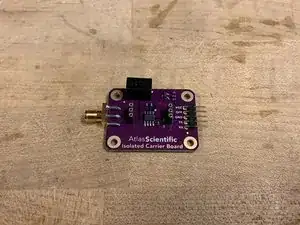

    • Locate the new style electrically isolated carrier board.

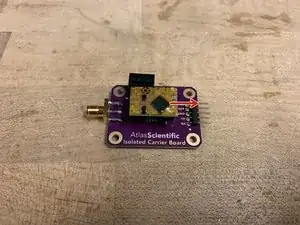

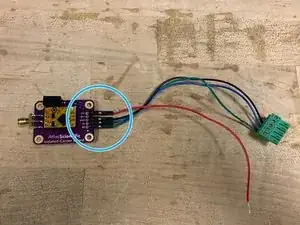

    • Locate the Dissolved Oxygen circuit board and place the board into the connection holes. The black square of the circuit board should face towards the pins.

    • Cut wires to approximately 6 1/2 inches to allow enough length to secure the wires into the 5-plug header.

    • Refer to the DO section of the wiring diagram when wiring the adapter.

  4. hORFGdsjOWLhMuOS
    hORFGdsjOWLhMuOS
    ZlKiQ61DeRJvPGUf

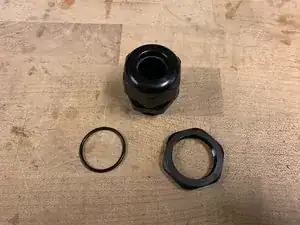

    • Obtain the cable gland.

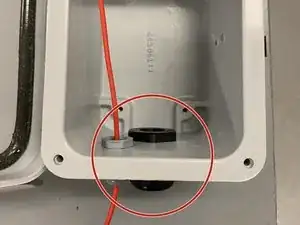

    • Screw the cable gland into the wall of the enclosure, through the large hole, as shown.

  5. CoIrieSqbkaxWimw
    CoIrieSqbkaxWimw
    klSqCwP5V35XKPKx

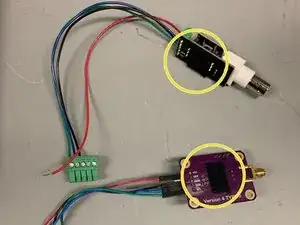

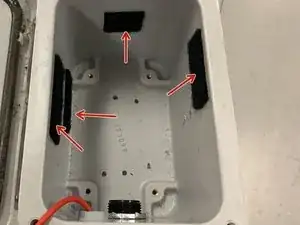

    • Insert velcro strips with soft sides inside of the enclosure in the following places

    • Attach velcro with rough side onto the back of the adapters.

  6. YbSMXr3DrWmgZxYw
    YbSMXr3DrWmgZxYw
    5QUXwM2ugXrFOnaw
    MWoAHWj4AAcayHnL

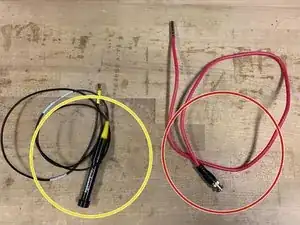

    • Locate the Atlas DO sensor

    • Locate the Atlas PT-1000 Temperature Sensor

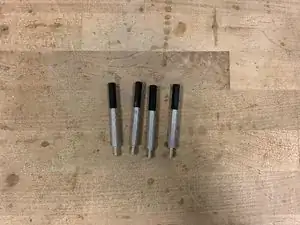

    • Obtain four 1.5-inch long standoffs and 4 1-inch long standoffs. Screw the standoffs together as shown, to make four 2.5-inch long standoffs

    • Thread the wires of the sensors into the cable gland. Proceed to screw the standoffs into the holes of the enclosure.

  7. vF1jTAp42aqIcxSA
    vF1jTAp42aqIcxSA
    KXC2CUeVwMNspZRt
    BpE6JbMdVbNQveJC

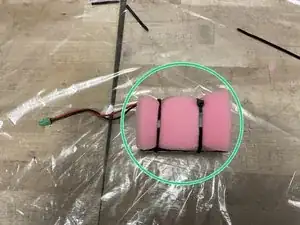

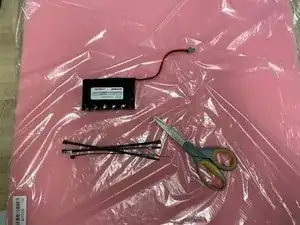

    • Obtain one battery, 4 zip ties, foam, and a pair of scissors

    • Cut out two battery-sized pieces of foam

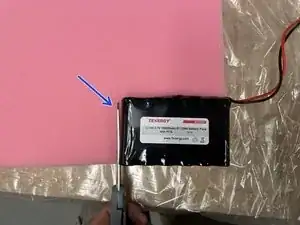

    • Sandwich the battery between the two pieces of foam and secure it using the zip-ties. Connect the zip-ties to make two extra long zip-ties

  8. LvUle5yiUOm6s5YL
    LvUle5yiUOm6s5YL
    OtyoJUEvlfXHXMmS
    fhHru1u5iqoTSJVw

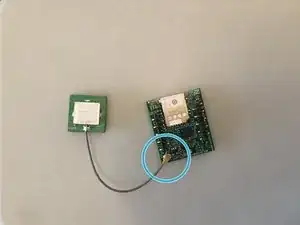

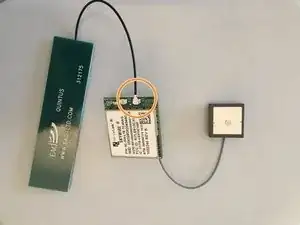

    • Obtain the cell module (modem), GPS, and antenna

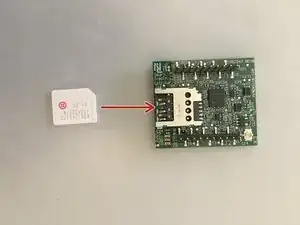

    • Insert Super SIM card into cell module

    • Attach the GPS to the connection shown (grey wire)

    • Attach the antenna to the connection shown (black wire)

  9. uaOxoQWTXKq5LggF

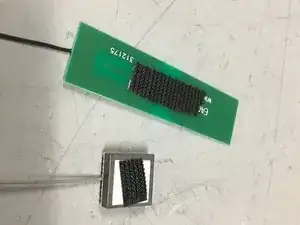

    • Attach rough-sided velcro on the antenna and GPS as shown in the picture.

  10. IsBBZ1tQfAvjDJtU
    IsBBZ1tQfAvjDJtU
    XRpERkiKNhWVxpgv
    oGp6A51OMXCCUvSB

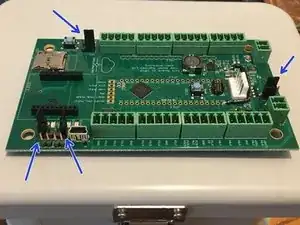

    • Obtain Open-Storm board and place 4 jumpers in the spots shown

    • Insert microSD card into board

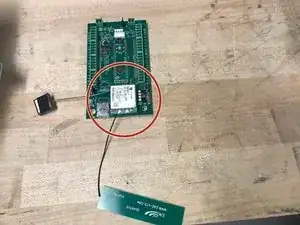

    • Attach the cellular module onto the sensor node board in the appropriate place

  11. IpExQnAJeZXOmJrg
    IpExQnAJeZXOmJrg
    vhcFpUS1LThrTgkl
    XRHWljLrlj2nGCLm
    • Put the battery into the node enclosure between the area of the standoffs

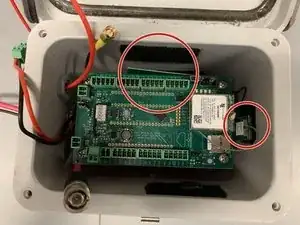

    • Place the board with the modem and the GPS antenna onto the standoffs and GENTLY screw the board in place. Then stick the modem and GPS in the locations highlighted.

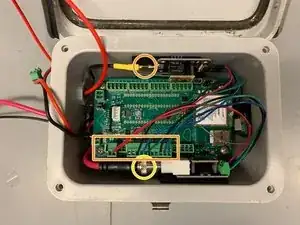

    • Stick the carrier boards onto the sides of the interior. Make sure to place the carrier in their respective location highlighted.

    • Follow the wiring diagram when wiring the carrier boards to the circuit board.

  12. BQKabhTT3UXsaD1g
    BQKabhTT3UXsaD1g
    NjiOTemfHxbU2KEN
    AUgY3pMWcAxIAZdQ

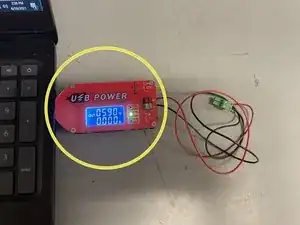

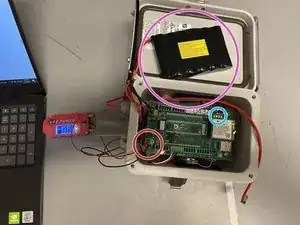

    • Obtain USB power supply, plug into a laptop, and set output to 5.9V

    • Check the voltage with a voltmeter (you may have to set the power supply to ~5.8V for the voltmeter to read 5.9V)

    • Plug in the green terminal block from the power supply into the Open-Storm board solar port.

    • Confirm the solar charge LED is off.

    • Plug in a dead battery to the battery port. This step will not work with a charged battery

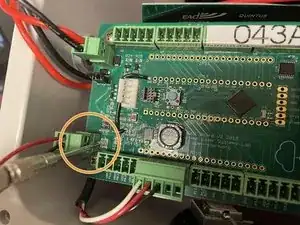

    • CAREFULLY turn the silver potentiometer next to the charge controller IC with a small flathead screw driver until the charge light turns on.

    • Although the screw has a phillip screw head, using a phillip screwdriver may damage the potentiometer. The hole in the center is too shallow for most screwdrivers. It is easier to use a flathead screwdriver!

    • Resource: 1. How to Select MPP Voltage on a Solar Charge Controller 2. Sunny Buddy Solar Charger V13 Hookup Guide

  13. U1TbXRONGuQiL4hS

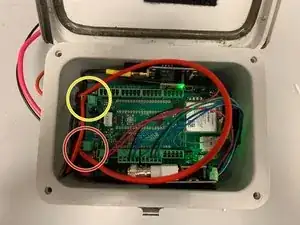

    • Plug in the battery as highlighted

    • Plug in the solar panel as highlighted

    • The lights of the two sensor circuit boards should turn on

  14. OWdVRHfJLyFYxFpM
    • Apply the open-storm sticker to the side of the enclosure as shown

    • Apply the unique node ID sticker to the top as shown

  15. y2y4vj4THxRnE4PH
  16. 1wWmBSS1VpQOtOhl
    1wWmBSS1VpQOtOhl
    GcLyFyGNoyJkRQC4
    2tNBtT3Npf1FyvUO

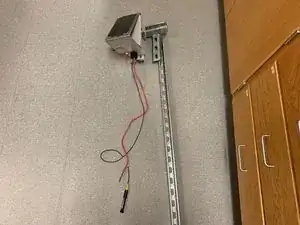

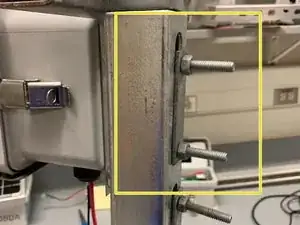

    • Locate a 5 foot long steel strut channel

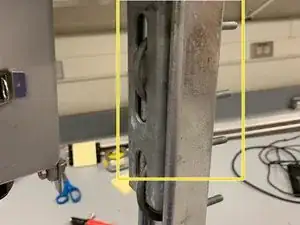

    • Using U-bolts, attach the node handle to the strut channel as shown

  17. obVjFUildG6HikfY
    obVjFUildG6HikfY
    VyxgklNklScEL6A6

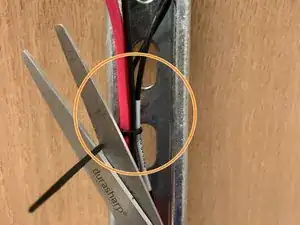

    • Using a zip tie, tie both of the sensor's cables together. Since the DO's cable is longer, make a loop to shorten its length

    • Using hose clamps, secure the cables and the sensors along the struct channel

  18. sC5qEjWsZJClnTTV
  19. QhaMre5gEbhuwDSC
    QhaMre5gEbhuwDSC
    IgLrNGnxTOTRmUVl
    ddKFvE66vnqHd5qT

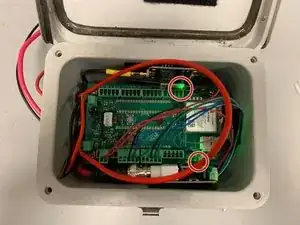

    • The sensor lights in the node should be turned on

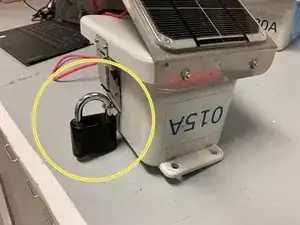

    • Attach the lock to the side of the node

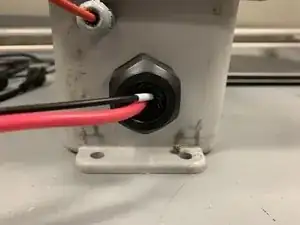

    • Make sure to twist the cable gland so that the wires are snug together

    • If the DO readings emit a reading of 0 mg/L then:

    • Make sure the DO circuit board is facing the correct orientation (refer to step 2)

    • Make sure that the jumper wires are connected correctly and securely. Likewise, check if the RX and TX wires are swapped.

    • Check the connection between the adapter cable and the housing of the DO sensor to see if it is tight and sealed.

    • Make sure there is adequate electrolyte solution in the cap of the DO sensor.

    • If the steps above fail, replace the DO sensor circuit board.

    • If the DO readings emit a reading of 100,000 mg/L then:

    • Replace the DO sensor circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
