Dopo Double Power 7 Speaker Replacement

Geschrieben von: mike pelosi
  • Kommentare: 0
Dopo Double Power 7 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Purchasing a new or used speaker will be necessary if yours is broken. Since the Dopo Double Power 7 is not a very expensive or popular device, finding just the speaker for sale may be difficult. We suggest purchasing a used one with a functional speaker.

  1. EGMqfCG6AdPmT6mA

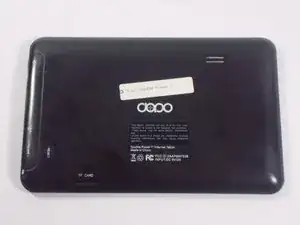

    • The rear panel is secured to the front case and can simply be pried apart without damage.

  2. 4cbUBZG6tG16WLPs

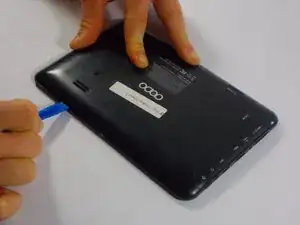

    • Carefully, wedge the plastic opening tool in-between the seam that separates both halves of the tablet.

  3. ZONBl1DAUyoFOOMn

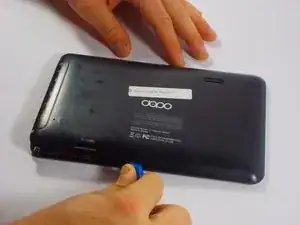

    • Run the plastic opening tool along the seam looking for the clips and lift up on the rear panel.

  4. JFiVHPl3Qiedm1Cn

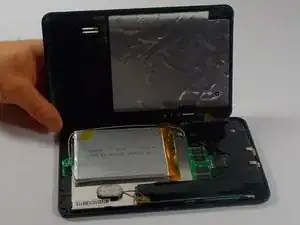

    • The rear panel should come completely off.

  5. J4TSNxs4YReeDAwB

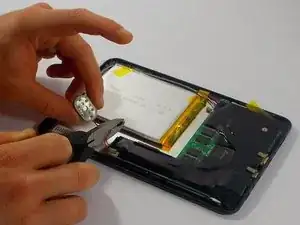

    • Using wire cutters, cut the red and black wires connected to the speaker.

    • The speaker is magnetized and not permanently attached.

Abschluss

To reassemble your device, follow these instructions in reverse order.
