Dreamax DMX-ST7A Camera Replacement

Geschrieben von: Stacey Mattila
  • Kommentare: 0
Dreamax DMX-ST7A Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

The type of front facing camera that the tablet requires is a 0.3 MP. The video on the tablet uses 30fps 720p(MPEG-4/H.264).

  1. NwYg3HqNUH6YYjpD

    • Position the tablet so the ports and screws are facing you.

  2. pLclvkPQYe3r46cj

    • Remove the two 2.5mm screws using the Phillips #00 precision screwdriver.

  3. FWIxYSuwhMBhYA3J
    FWIxYSuwhMBhYA3J
    bTRwjTUnAVCJiNHZ

    • Use the plastic opening tool to assist in removing the back cover.

  4. kmntaWu6ixwyEQZM

    • Upon removing the back cover position the tablet as seen in the picture.

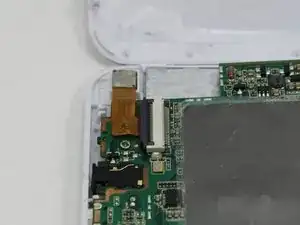

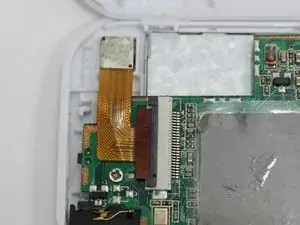

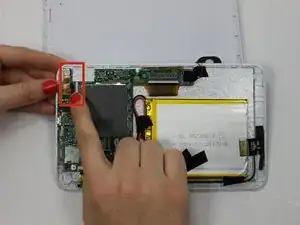

  5. sKOHQhqNdflFhgYN
    sKOHQhqNdflFhgYN
    ykqQAInRd3xAh1Yv
    XmMMUWd6AQN2CBG6

    • Lift the black bar towards the right to expose the data strip.

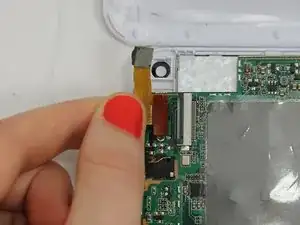

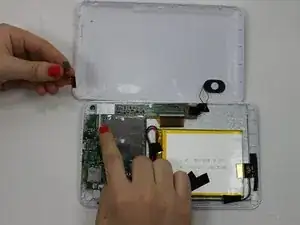

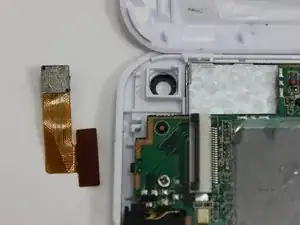

  6. JoChrODXTpQJpA1H
    JoChrODXTpQJpA1H
    EHQoqXt4oEgGTkGd
    NRkK1P2gIGktUONZ

    • Remove the data strip and camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
