Dremel 8200 Disassembly

Geschrieben von: mitchellbarnhart
  • Kommentare: 2
Dremel 8200 Disassembly

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

Disassembling your Dremel 8200.

  1. lALTOVtgQZL2CEnG
    lALTOVtgQZL2CEnG
    eiwtIZF5t54BBREX

    • Take off the screw cap at the top

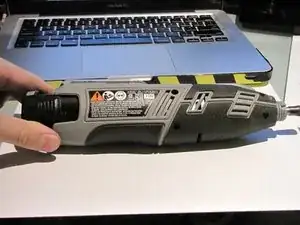

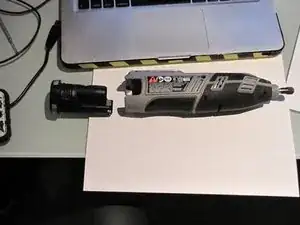

  2. nYq1KvLDSVl3rMxK
    nYq1KvLDSVl3rMxK
    6l1PBcWR5wOpnLt1

    • Take out the battery

  3. Remove oblong belt clip

    • Remove oblong belt clip

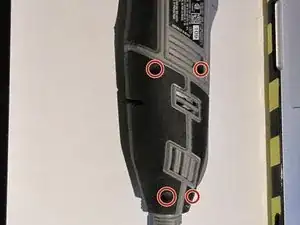

  4. Hyx6FuqnVCYLrqQe

    • Unscrew screws

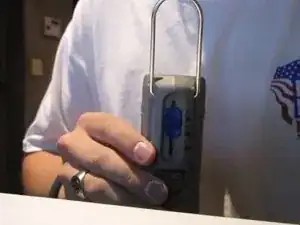

  5. Take back u clip out carefully

    • Take back u clip out carefully

    • Be very careful to not injure yourself

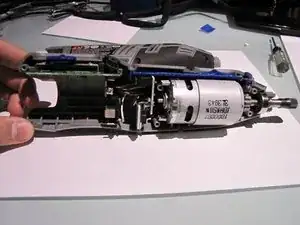

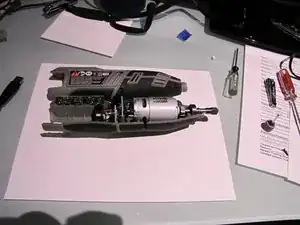

  6. EHsZOvEHbMrNxLKB
    EHsZOvEHbMrNxLKB
    Wx4xucYoSTGIfkXT

    • The casing should just open right up and be easily accessible

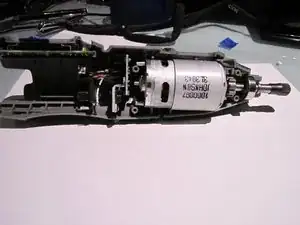

  7. EugA45UcMyv6E1nW

    • You can remove the buttons except for the sliding one that adjusts the speed

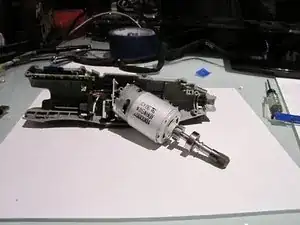

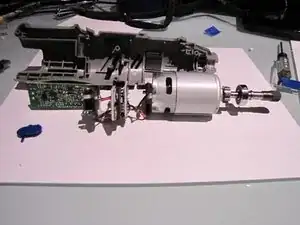

  8. 6RS4vPNfdDDYDR5x
    6RS4vPNfdDDYDR5x
    VsSPoSi5NYWDpYur

    • You can take the motor out first and it will be a little hard to do so

    • Work your way down and take out each successive circuit board

    • The last thing to be out should be the sliding speed adjustment and the button for that should fall right out

Abschluss

To reassemble your device, follow these instructions in reverse order.
