Einleitung
This guide will show you how to replace a defective gear lock button. With only a few steps and a few tools you will be able to open up the device and gain access to the faulty button. The button can then be easily swapped out for a new one.
Werkzeuge
-
-

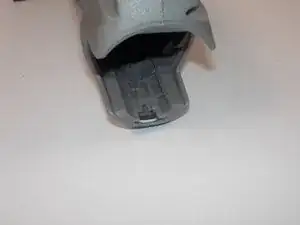

Locate the battery at the back of your Dremel. Firmly grasp the battery on both sides and pull. It should easily come out of the battery well.
-
-
-
Remove the ring located around the speed selector switch by pulling apart on either side. This should require very minimal force.
-
-
-
Remove the collar wrench by pushing the gear lock button. Continue to hold this button as you rotate the wrench counter-clockwise until it is removed.
-
-
-

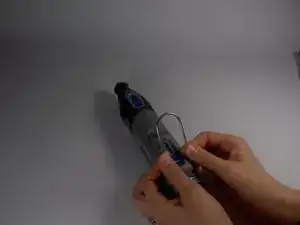

Remove the metal clasp from the battery well. This piece helps hold the plastic shell of the device together. Pry it out by gently applying some force with a screwdriver.
-
-
-
Remove the faulty gear lock button. It should come out of the device easily with no force needed.
-
To reassemble your device, follow these instructions in reverse order.
