Dremel MultiPro 395 Armature Replacement

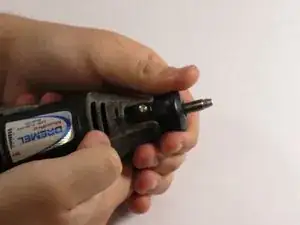

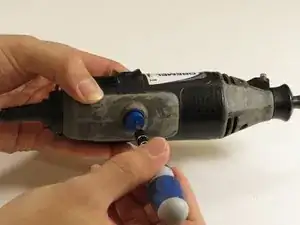

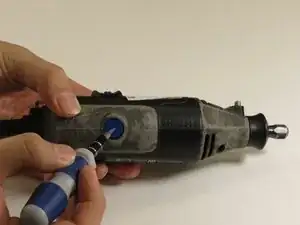

Remove the blue caps located on either side of the MultiPro, using a 3 mm flathead screwdriver.

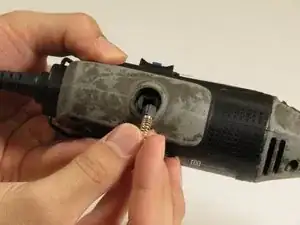

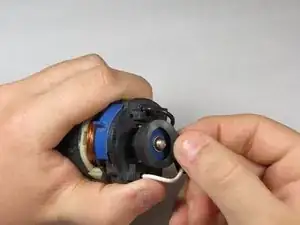

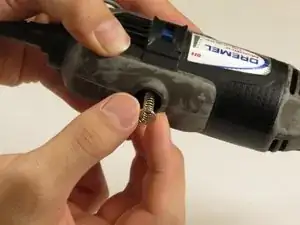

Carefully remove the carbon brushes attached at the end of the springs by gently pulling on the springs using your hands.

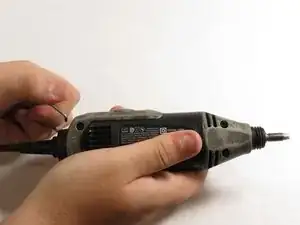

Pull one side of the hanger up and then pull away from the Multipro until the other side can be pulled out.

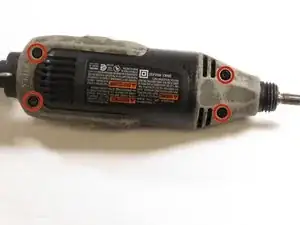

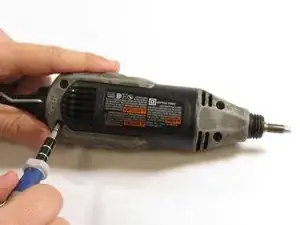

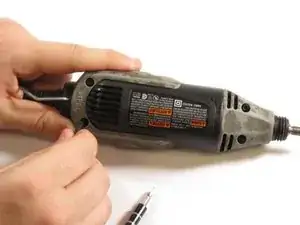

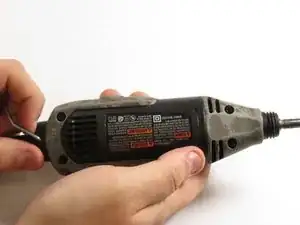

Remove the 4 screws located on the bottom of the Multipro with a T15 screwdriver.

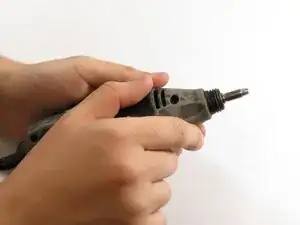

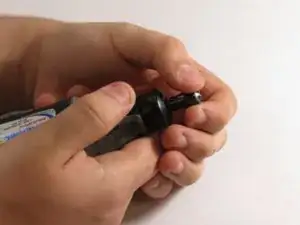

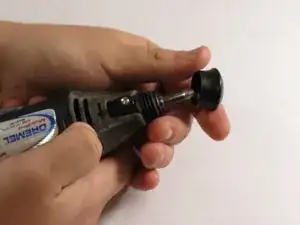

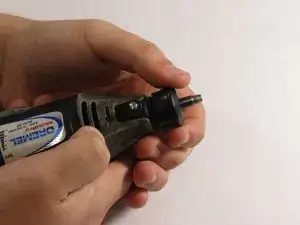

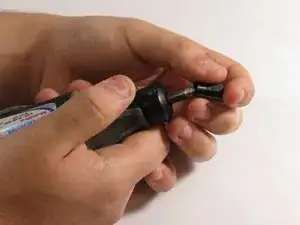

Hold down the collet lock, remove the chuck cap from the top of the Multipro by screwing counterclockwise.

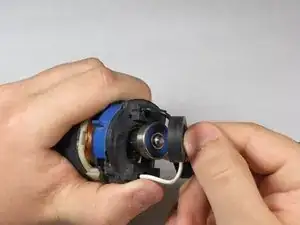

Remove the black housing cap from the Multipro located directly below the chuck cap.

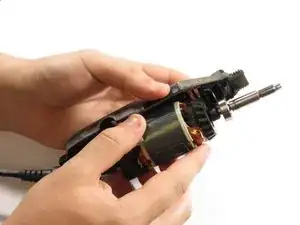

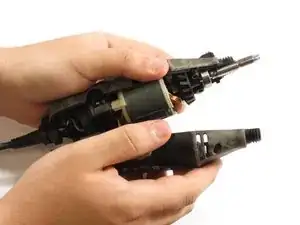

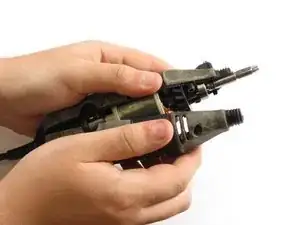

Pull the bottom side of the casing up to remove it.

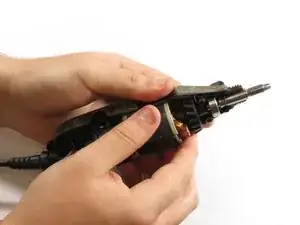

Gently lift the motor shaft out of the Multipro.

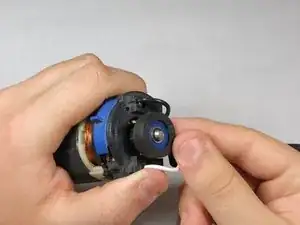

Remove the rubber ring from the bottom of the armature.

Pull the on/off switch off of the 120V field, paying careful attention to the prongs on the on/off switch.

For reassembly, make sure the prongs are touching the metal connectors on the bottom of the 120V field

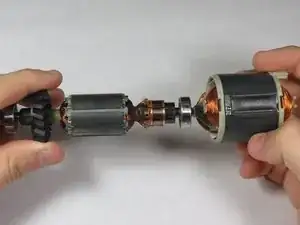

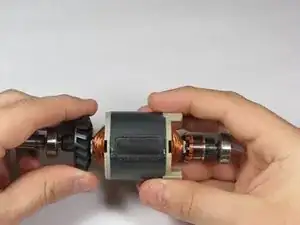

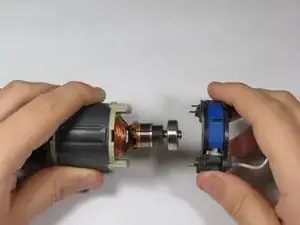

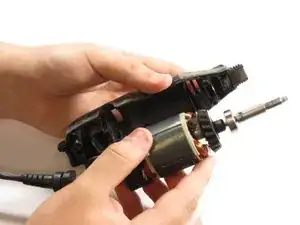

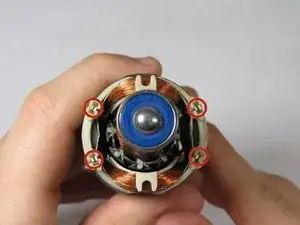

Carefully slide the armature out of the 120V field.

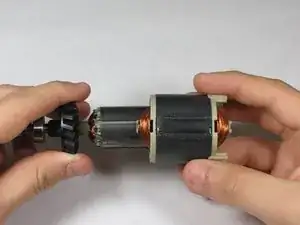

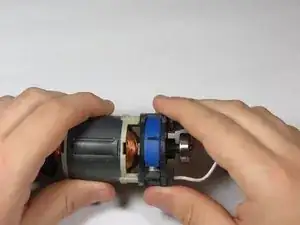

Carefully slide the new armature back into the 120V field.
