Drift HD 720 LCD Screen Replacement

Geschrieben von: Hector Rodriquez
  • Kommentare: 4
Drift HD 720 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

If your device seems to be turning on but the screen isn't displaying anything, you may be able to fix the issue by replacing the screen.

  1. CQSsS3PpV4C45aBW
    CQSsS3PpV4C45aBW
    mwTp6DuBthJWIDnr

    • Unscrew the back plate counterclockwise until it comes off.

  2. IaGYOOVGZMGHkRbW

    • Push the black battery tab next to the battery to get the battery out.

    • Remove the battery.

  3. MI1npv2WxgvClrmj

    • Remove six 8mm long Philips head screws with the J0 Philips head from the outer case.

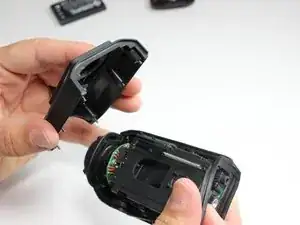

  4. TxTqpqLDdvcnurvt

    • Remove the back case from camera body.

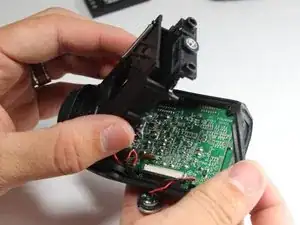

  5. Fh5EoeUUFTueEQBy

    • Carefully remove the battery housing from the camera body.

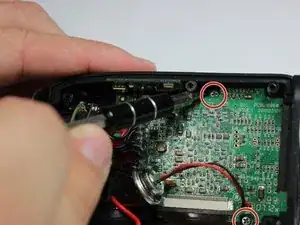

  6. uHyi4Pkb1O2pCJOY

    • Use J0 Phillips head to remove two 6mm long Phillips head screws from the motherboard.

  7. HHWKC2EvwHjbTHtC

    • Remove the motherboard (green) from the front case housing.

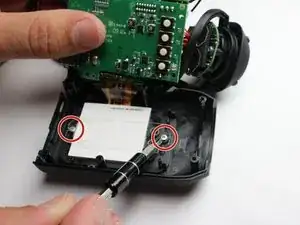

  8. mc3VPSiI6s3cnEfA

    • Use the J0 Phillips head screws to remove two 5mm long Phillips head screws from the plastic bracket holding LCD in place.

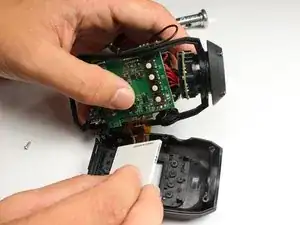

  9. krQxdTYZgGMQQsGc

    • Remove the LCD screen from the front cover.

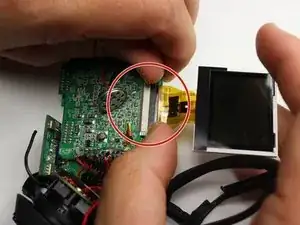

  10. 4uxGVaQTgBgcwCkT

    • Slide the black bar toward the LCD screen in order to remove the screen from slot.

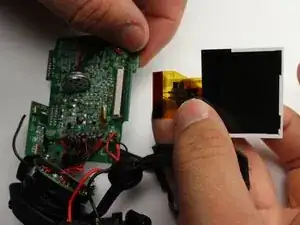

  11. UV1FrTg1hFvcT5MY

    • Remove the LCD from motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
