Drill Master Heat Gun Heating Coil Replacement

Geschrieben von: Mikayla Kim
  • Kommentare: 6
Drill Master Heat Gun Heating Coil Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

If you're confident in your repair skills, use this guide to replace the heating coil in the heart of your heat gun.

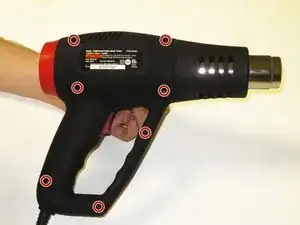

  1. IxCOiMtBieA2lDFa

    • Be sure the heat gun is unplugged before starting this process.

    • Remove the seven 14mm screws from the side of the drill using the PH#0 screwdriver.

    • You will need a screwdriver extension.

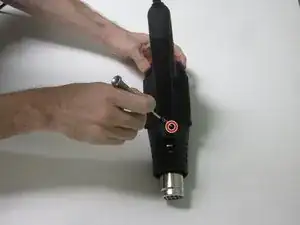

  2. xjVUToeESOqtkvg6

    • Remove the 8mm screw from underside of barrel using the PH#0 screwdriver.

    • Don't try to open the casing just yet.

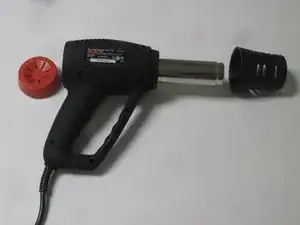

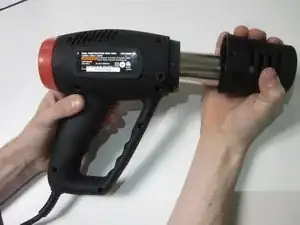

  3. NEu5lRVKKNBsGoFE
    NEu5lRVKKNBsGoFE

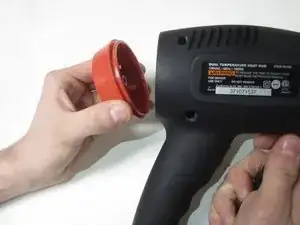

    DLVo2kQacYDCKOBD
    xmg5qD2ZoM6WgEXY

    • Remove the barrel casing on either end by twisting and pulling each side off.

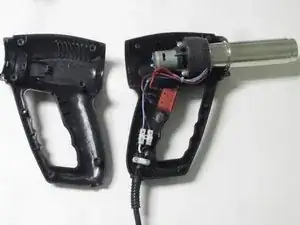

  4. OqaM2oXmTPmJtfYZ

    • Remove the top casing to reveal inside of drill. You might have to tug a little harder for this one.

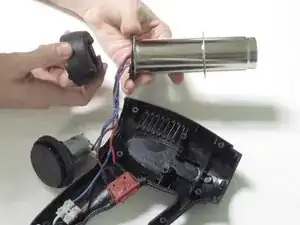

  5. GkxPfiZZJmiaEGZ3

    • Remove the plastic casing from the end of the barrel.

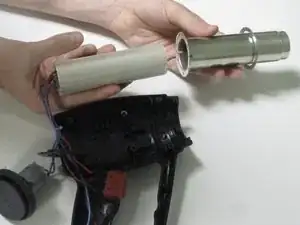

  6. CoClTqciVgnJFDkL

    • Remove the metal casing from the heating element.

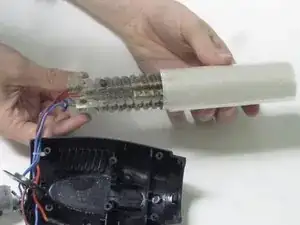

  7. NtPMNOEZ6jcNyonT

    • Slowly remove the heat resistant wrapping from the heating element.

    • Be careful here - the wrapping can be easily torn!

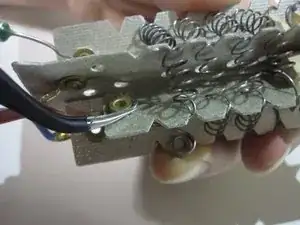

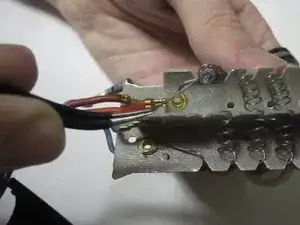

  8. oTDUGAxus4eB4OcI
    oTDUGAxus4eB4OcI
    vOiOVSGjSwFWlhjT

    • Use the angled tweezers to remove the heating coil end from the input point.

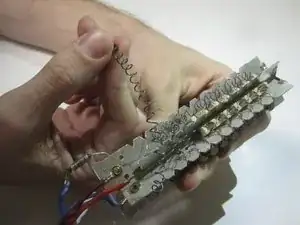

  9. vLd2cfFYX5QuJYsH

    • Remove the heating coil by unraveling it from the heating element.

    • To replace, you'll need to re-wrap a new wire around the coil and attach it to the wires at the bottom (see Step 8).

    Hi,

    it looks like there is a thermal fuse between the end of the blue cord and the heating element. Would it be possible to get the specifications or any other data which is written on it?

    Thank you.

    best wishes,

    berthold

    kauf habmalnefrage -

    AUP0 AF133

    Tf133°C G1

    Silver casing, red lettering, black forward-most plastic “nose” bit

    Kyle Russer -

    Will the gun still blow air if the heating coil is removed? I just need the air blowing function of a mini heat gun; focused air stream for crafts.

    Susan Noguchi -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Mikayla Kim

Mitglied seit: 31/01/17

517 Reputation

3 Kommentare

Where are the heating coil wires found?

Thomas Frye -

I am asking where I can find a NEW heating coil wire?

Thomas Frye -

There is continuity in the heating coil wire, so I believe something else is causing my problem. There is one terminal on the heating element

that has a curved, rigid, bulbous hotdog shaped component that is right close to the terminal on the heating element. I am not sure what it is.

One can be seen in the picture at the top of the page in the introduction.

Thomas Frye -
