Driver Side Mirror Replacement on 2002 Chevrolet Tahoe

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide will provide you with the necessary steps in order to replace the driver side mirror of a 2002 Chevrolet Tahoe. A common occurence on this make is for the driver side mirror to fog over time and become unusable unless replaced. Many dealerships will try to persuade you into replacing the entire mirror module but that is unnecessary and costly.

  1. fOlgWC5ZZjXgIcRu
    fOlgWC5ZZjXgIcRu
    AcuhdDKNLrcgHgHR

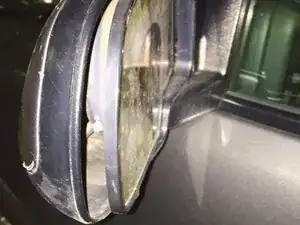

    • Turn the mirror in towards the vehicle allowing access to the left side of the mirror.

    • This can be done either electronically from the inside of the vehicle or manually by applying force to the mirror.

  2. NnwtpVxcNjQbXsQp

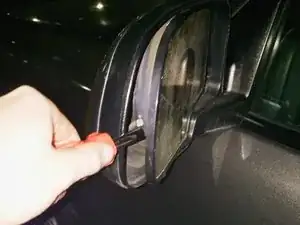

    • Insert the screwdriver on the left side of the mirror and apply force to release.

  3. oQOfVloZqUYpyHar
    oQOfVloZqUYpyHar
    uagNDejKXIQQ2Nig
    MMkKT5kfQ2YKjEuu

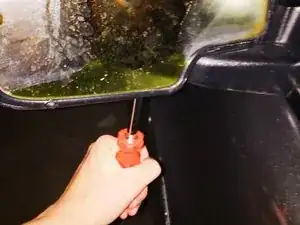

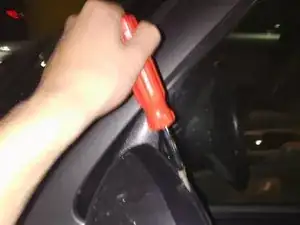

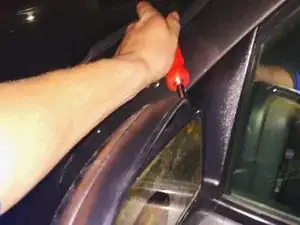

    • Insert the screwdriver on the top of the mirror and apply force to release this section.

    • Repeat this step for the bottom portion along with the ride side of the mirror.

  4. 3SaqKuDFw5SuBWs3
    3SaqKuDFw5SuBWs3
    nZYuexUhnlDu3tSL

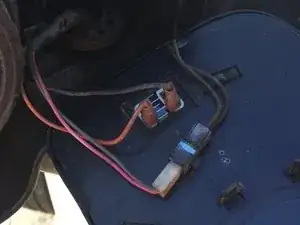

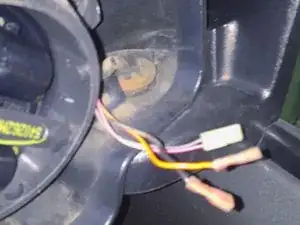

    • Unclip all three wires and remove the old mirror from the module.

Abschluss

To reassemble your new mirror, follow these instructions in reverse order.
